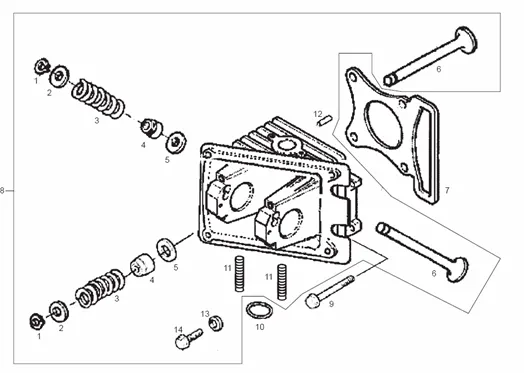

Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50-100 4T E2 2004-2006 (EMEA)

	P2R reference	66493
	Maker reference	436438

GASKET/BUSH OF VALVE OEM PIAGGIO COMMON A LA RANGE-436438

	P2R reference	70952
	Maker reference	969267

WASHER DE SPRING CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE-969267

	P2R reference	70956
	Maker reference	969272

969272-SPRING

	P2R reference	69369
	Maker reference	845782

845782-SPRING

	P2R reference	66152
	Maker reference	285846

HALF-LUNE/CLAVETTE DE VALVE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-285846

	P2R reference	66222
	Maker reference	289420

COUPELLE INFERIEURE VALVE OEM PIAGGIO 50 4T ZIP, FLY, LIBERTY 2016 <-289420

	P2R reference	70946
	Maker reference	969239

VALVE EXHAUST OEM PIAGGIO 50 ZIP 4T 2000 >, FLY 4T 2005 >, LIBERTY 4T 2006 >, PRIMAVERA 4T 2013 > VESPA LX 4T 2005 >, VESPA SPRINT 4T 2014 >/APRILIA 50 SCARABEO 4T, SPORT-CITY 4T-969239

	P2R reference	70990
	Maker reference	969752

VALVE INTAKE OEM PIAGGIO FLY 100 2006 > 2014, ZIP 100 2006 > 2018, LIBERTY 100 2011 > 2014-969752

	P2R reference	70991
	Maker reference	969753

VALVE EXHAUST OEM PIAGGIO 100 SCARABEO 2001 > 2014-969753

	P2R reference	70945
	Maker reference	969238

VALVE INTAKE OEM PIAGGIO 50 ZIP 4T 2000 >, FLY 4T 2005 >, LIBERTY 4T 2006 >, PRIMAVERA 4T 2013 > VESPA LX 4T 2005 >, VESPA SPRINT 4T 2014 >/APRILIA 50 SCARABEO 4T, SPORT-CITY 4T-969238

	P2R reference	69005
	Maker reference	832613

CYLINDER HEAD GASKET OEM PIAGGIO 50 FLY 4T, LIBERTY 4T, VEXPA LX 4T-832613

	P2R reference	70987
	Maker reference	969717

CYLINDER HEAD GASKET SCOOTER OEM PIAGGIO 100 CC COMMON A LA RANGE-969717

	P2R reference	69006
	Maker reference	832614

CYLINDER HEAD GASKET OEM PIAGGIO 50 4T LIBERTY, FLY, SCARABEO, LX 2009 <-832614

	P2R reference	69385
	Maker reference	8461974

CYLINDER HEAD OEM PIAGGIO 50 FLY, LIBERTY, VESPA LX, PRIMAVERA, VESPA-S, SPRINT/APRILIA 50 SCARABEO, SPORT-CITY (2 SOUPAPES)-8461974

	P2R reference	71002
	Maker reference	969939

969939 - CULASSE

	P2R reference	66337
	Maker reference	319242

SCREW BTR (6X80) OEM PIAGGIO COMMON A LA RANGE-319242

	P2R reference	70996
	Maker reference	969878

969878-GASKET

	P2R reference	70944
	Maker reference	969236

GASKET EXHAUST OEM PIAGGIO 50 FLY 4T, ZIP 4T, LIBERTY 4T, VESPA LX 4T, PRIMAVERA 4T, VESPA-S 4T-969236

	P2R reference	65981
	Maker reference	239397

STUD EXHAUST (6X30) OEM PIAGGIO 50-125 FLY, LIBERTY, VESPA LX, VESPA SPRINT, 50 NRG, TYPHOON, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR, SPORT CITY ONE-239397

	P2R reference	72696
	Maker reference	B015956

BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956

	P2R reference	66703
	Maker reference	486075

GASKET OF MANO OU DE VIDANGE OEM PIAGGIO COMMON A LA RANGE-486075

	P2R reference	71004
	Maker reference	969972

969972-SCREW
