Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50-100 4T E2 2004-2006 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

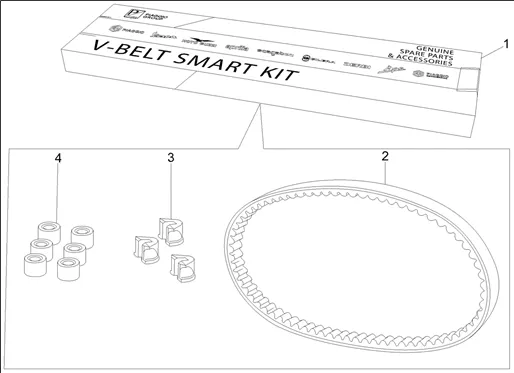

Maintenance : 30 KIT TRASMISSIONE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1123/Atlantis_50-100_4T_E2_2004-2006_(EMEA)_30.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/6/0/6/img/157606.jpg)
1 |
KIT TRANSMISSION (BELT, GALETS, GUIDES) OEM PIAGGIO 50 FLY 4T 1998 > 2015-1R000435 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/5/1/img/69251.jpg)
2 |
DRIVE BELT SCOOTER OEM PIAGGIO 50 FLY 4T 2005 >, VESPA PRIMAVERA 4T 2013 >, VESPA SPRINT 4T 2014 >-842907 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/3/4/img/66234.jpg)
3 |
GUIDE/PATIN DE VARIATOR OEM PIAGGIO 50 ZIP 1996 >, TYPHOON 1996 >, FLY 2005 >, LIBERTY 1998 >, NRG 1998 >, VESPA LX 2005 >, VESPA-S 2007 >/GILERA 50 STALKER, RUNNER 1997 >/APRILIA 50 SR 2011 >-289931 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/1/0/img/73110.jpg)
4 |
GALET/ROLLER (19X15, 5) 6, 4 G OEM PIAGGIO 50 FLY 4T, LIBERTY, NRG, TYPHOON, ZIP 4T, VESPA LX 4T, PRIMAVERA, SPRINT/APRILIA 50 SPORT-CITY, SR/GILERA 50 DNA, RUNNER, STALKER (SET OF 6)-CM1102025 More informationQuantity required : 1 |
