Vehicle Exploded View - APRILIA ATLANTIC 250 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

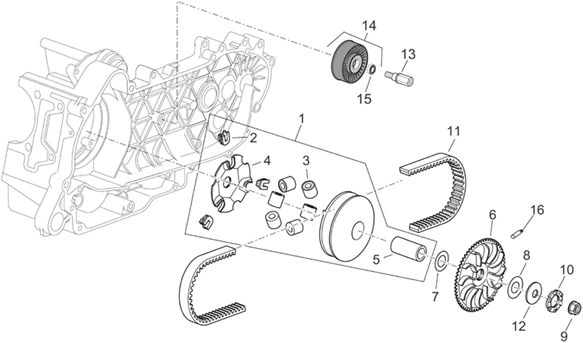

Moteur : 29.54 GROUPE VARIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/552/Atlantic_250_2006-2008_29.54.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/6/1/8/img/157618.jpg)
00 |
KIT TRANSMISSION (BELT, GALETS, GUIDES) OEM PIAGGIO 300 MP3, YOURBAN 2011-2018, X7 2008 >, VESPA GTS 2010 >,/GILERA 250-300 NEXUS 2010 >/APRILIA 250-300 ATLANTIC, SR-MAX 2011 >-1R000447 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/6/0/4/img/157604.jpg)
00 |
KIT TRANSMISSION (BELT, GALETS, GUIDES) OEM PIAGGIO 125 X8, X9, X7, VESPA GTS, X-EVO, MP3, HEXAGON GTX/GILERA 125 RUNNER, NEXUS/APRILIA 125 ATLANTIC, SR-MAX-1R000433 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/5/1/img/139451.jpg)
1 |
PULLEY MOTRICE/VARIATOR OEM PIAGGIO 300 MP3, BEVERLY, VESPA GTS, X7/GILERA 250-300 NEXUS/APRILIA 250-300 ATLANTIC, SCARABEO, SPORT-CITY CUB, 300 SR-MAX-CM1444085 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/3/3/img/73233.jpg)
1 |
PULLEY MOTRICE/VARIATOR OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125-CM144403 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/1/img/66461.jpg)
2 |
GUIDE/PATIN DE VARIATOR MAXI SCOOTER OEM PIAGGIO 125 MP3 2007 >, X8 2004 >, X9 2003 >, X-EVO 2007 >, FLY 2005 >, VESPA LX 2005 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 2005 >-4348555 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/5/5/img/69255.jpg)
2 |
GUIDE/PATIN DE VARIATOR MAXI SCOOTER OEM PIAGGIO 250-300 MP3 2006 >, X7, VESPA GTS 2005 >, BEVERLY, 250 X8, X9, X-EVO/GILERA 250-300 NEXUS/APRILIA 250-300 ATLANTIC, SCARABEO-843028 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/0/4/img/69604.jpg)
3 |
GALET/ROLLER MAXI SCOOTER OEM PIAGGIO APRILIA 250-300 ATLANTIC/GILERA 250-300 NEXUS/PIAGGIO 250-300 BEVERLY, 300 MP3, YOURBAN, VESPA 300 GTS (14 G) (VENDU A L UNITE)-849480 More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/7/9/img/73079.jpg)
3 |
GALET/ROLLER (19X17) 07, 4G, MAXI SCOOTER OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS, RUNNER 4T (SET OF 6)-CM1038045 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/2/3/img/69223.jpg)
4 |
FLASQUE A ROULEAUX DE VARIATOR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-842204 More informationQuantity required : 1 |
|||||||||
5 |
483889-SPACER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/5/8/img/69358.jpg)
6 |
JOUE FIXE DE PULLEY MOTRICE OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125-845607 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/3/6/img/69136.jpg)
6 |
JOUE FIXE DE PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE 250-300 MAXI SCOOTER-840193 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/2/img/66462.jpg)
7 |
WASHER PLATE (17X32X1) PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-434885 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/3/6/img/66436.jpg)
8 |
WASHER PLATE PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC-433391 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/5/3/img/69153.jpg)
8 |
WASHER PLATE (12, 1X36X2) OEM PIAGGIO COMMON A LA RANGE-840533 More informationQuantity required : 1 |
|||||||||
|
9 |
Écrou |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/3/img/72693.jpg)
9 |
NUT IGNITION/PULLEY OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-B015804 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/6/7/img/68667.jpg)
10 |
OEM SCOOTER KICK OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-827386 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/7/9/img/69179.jpg)
11 |
BELT OEM PIAGGIO 125 LIBERTY, MP3, X7, X8, X9, X-EVO, FLY, VESPA LX, VESPA GTS, YOURBAN/APRILIA 125 ATLANTIC, SR-MAX/GILERA 125 NEXUS, RUNNER 2015 <-841213 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/4/3/img/68843.jpg)
11 |
BELT "PIAGGIO GENUINE PART" 250 X9-EVO, MP3, X7, X8, X-EVO, VESPA GTS, 300 MP3, VESPA GTS/APRILIA 300 SR-MAX/GILERA 250-300 NEXUS -82941R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/0/2/7/img/156027.jpg)
11 |
DRIVE BELT MAXI SCOOTER OEM PIAGGIO 300 MP3 HPE 2019 >, GTS 2012, VESPA GTV 2010 >, X7, APRILIA 300 SR-MAX/GILERA 300 NEXUS-1A009598 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/4/3/img/70743.jpg)
12 |
WASHER ELASTIC DE PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-880950 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/3/6/img/68736.jpg)
13 |
SCREW PULLEY DE BELT OEM PIAGGIO COMMON A LA RANGE 200-250-300-828217 More informationQuantity required : 1 |
|||||||||
|
14 |
Poulie dentée |
|||||||||
|
15 |
82577R-BEARING More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/2/0/img/66420.jpg)
16 |
VARIATOR PIN "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250 CC -432204 More informationQuantity required : 1 |
|||||||||
