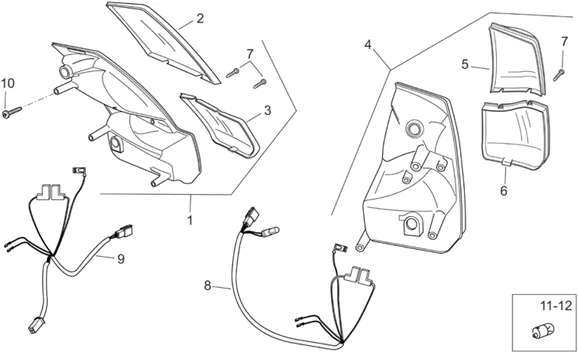

Chassis : 28.37 FEU ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/552/Atlantic_250_2006-2008_28.37.PNG)
1 |
AP8127259 - FEU ARRIERE D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/1/4/2/img/48142.jpg)
2 |
CABOCHON DE REAR RIGHT INDICATOR OEM PIAGGIO 125-250-400-500 ATLANTIC-AP8127445 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/5/2/5/img/38525.jpg)
3 |
CABOCHON OF REAR LIGHT RIGHT OEM PIAGGIO 125-250-300-400-500 ATLANTIC-642133 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/0/8/1/img/48081.jpg)
4 |
TAILLIGHT- LEFT APRILIA 125-250-400-500 ATLANTIC 2006>2008 -AP8127316 More informationQuantity required : 1 |
||||||
|
5 |
LENS FOR FLASHER-REAR- LEFT- "PIAGGIO GENUINE PART" 125-250-400-500 ATLANTIC -AP8127447- More informationQuantity required : 1 |
||||||
|
6 |
CABOCHON OF REAR LIGHT LEFT OEM PIAGGIO 125-250-300-400-500 ATLANTIC-642135 More informationQuantity required : 1 |
||||||
|
7 |
642143-SCREW AUTORANDEUSE More informationQuantity required : 4 |
||||||
|
8 |
AP8127392 - CABLAGE FEU AR G; More informationQuantity required : 1 |
||||||
|
9 |
AP8127249 - CABLAGE FEU AR D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
10 |
SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329 More informationQuantity required : 6 |
||||||
|
11 |
AMPOULE/LAMPE 12V 10W RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-AP8127489 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/7/img/65727.jpg)
12 |
AMPOULE/LAMPE 12V 21/5W BAY15D/P21/5 OEM PIAGGIO COMMON A LA RANGE-129953 More informationQuantity required : 2 |
