Vehicle Exploded View - APRILIA ATLANTIC 250 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

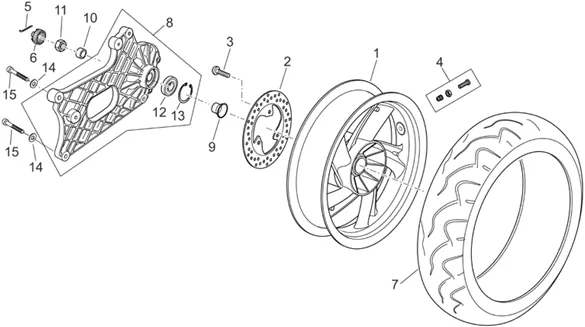

Chassis : 28.34 ROUE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/552/Atlantic_250_2006-2008_28.34.PNG)
1 |
AP8108990-REAR WHEEL NUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/7/2/9/img/48729.jpg)
2 |
BRAKE DISC REAR OEM PIAGGIO APRILIA 125-250 ATLANTIC 2003 >, 300 ATLANTIC 2010 >, 50 SR H2O 2004 >-AP8133601 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/4/3/img/50943.jpg)
3 |
SCREW BTR HEAD BOMBEE (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8152056 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/6/img/72136.jpg)
4 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-AP8201546 More informationQuantity required : 1 |
||||||
|
4 |
AP8202168 - SOUPAPE TUBELESS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/5/img/65355.jpg)
5 |
GOUPILLE SECURITE NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-012789 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/9/6/5/0/img/189650.jpg)
6 |
CAGE MOUNTING NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-1C004746 More informationQuantity required : 1 |
||||||
|
6 |
CAGE MOUNTING NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-1C004746 More informationQuantity required : 1 |
||||||
|
7 |
AP8109279 - PNEU SAVA 130-70 13" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/9/0/7/img/49907.jpg)
8 |
PLATINE/BRACKET EXHAUST OEM PIAGGIO APRILIA 125-250-300 ATLANTIC 2003 > 2012-AP8145037 More informationQuantity required : 1 |
||||||
|
9 |
AP8121633-SPACER REAR WHEEL More informationQuantity required : 1 |
||||||
|
10 |
AP8121634 - ENTRETOISE ROUE ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/3/5/img/67035.jpg)
11 |
NUT (M16) OEM PIAGGIO COMMON A TOUTE LA RANGE-563728 More informationQuantity required : 1 |
||||||
|
12 |
AP8152402 - ROULEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/0/0/1/img/51001.jpg)
13 |
CLIPS/CIRCLIPS 47 OEM PIAGGIO COMMON A LA RANGE-AP8152401 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/0/img/71810.jpg)
14 |
WASHER PLATE (8. 5X24X2) OEM PIAGGIO COMMON A LA RANGE-AP8150018 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/9/img/71849.jpg)
15 |
SCREW BTR (8X50) OEM PIAGGIO COMMON A LA RANGE-AP8150277 More informationQuantity required : 2 |
