Vehicle Exploded View - APRILIA AF1 FUTURA 125 1990-1992
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

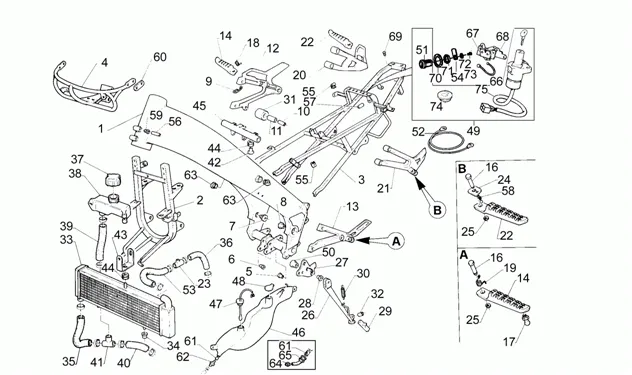

Chassis : 19 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/232/AF1_Futura_125_1990-1992_19.PNG)
1 |
|
||||||
|
1 |
|
||||||
|
1 |
CADRE *8135210 |
||||||
|
2 |
BERCEAU |
||||||
|
2 |
SUPPORT RADIATEUR+M (PL) |
||||||
|
3 |
SUPPORT DE SELLE |
||||||
|
3 |
SUPPORT DE SELLE |
||||||
|
4 |
SUPPORT CARENAGE |
||||||
|
5 |
AP8121151-" BUSH EN " " T " " " More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/9/img/71439.jpg)
6 |
BUSH EN T (D10) OEM PIAGGIO COMMON A LA RANGE-AP8121155 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/3/2/img/46732.jpg)
7 |
SWING ARM PIV. BUSH "PIAGGIO GENUINE PART" APRILIA 125 RS, AF1, TUONO, PEGASO -AP8121156- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/3/0/img/46730.jpg)
8 |
AP8121150 - DOUILLE More informationQuantity required : 1 |
||||||
|
9 |
PASSE FIL |
||||||
|
9 |
GUIDE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/1/6/img/46916.jpg)
10 |
SPACER REAR WHEEL OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX 2018 >-AP8121672 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/1/6/img/46616.jpg)
11 |
SPACER PLASTIQUE (14X19X25) OEM PIAGGIO COMMON A LA RANGE-AP8120568 More informationQuantity required : 1 |
||||||
|
12 |
Sup.Rep/Pied av.dr. |
||||||
|
12 |
Sup.Rep/Pied av.dr.futur |
||||||
|
13 |
Sup.Rep/Pied av.g. |
||||||
|
13 |
Sup.Rep/Pied av.g.futura |
||||||
|
14 |
AP8135313 - R-PIED PILOTE-PAIRE; More informationQuantity required : 1 |
||||||
|
16 |
Pivot repose-pieds |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/8/img/71438.jpg)
17 |
PIVOT FRICTION REST-FOOT OEM PIAGGIO COMMON A LA RANGE MOTO-AP8121134 More informationQuantity required : 2 |
||||||
|
18 |
Res.rap. pl. pil. D |
||||||
|
19 |
Res.rap. pl. pil. G |
||||||
|
20 |
SUPPORTO PEDANA =8132994 |
||||||
|
20 |
SUP.REP/PIED AR DR.FUTUR |
||||||
|
21 |
SUPPORTO PEDANA =8132996 |
||||||
|
21 |
SUP REP/PIED AR G.FUTURA |
||||||
|
22 |
PASSENGER FOOTREST (PAIR) "PIAGGIO GENUINE PART" 50-125 RS, TUONO, MX, FUTURA -AP8132812- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/3/3/img/45133.jpg)
23 |
AP8102112 - RACCORD RENIFLARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/6/9/1/img/48691.jpg)
24 |
AP8132720 - PLAQUE FDC R-PIED; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/4/img/71404.jpg)
25 |
CIRCLIPS OF REST FOOT OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8120573 More informationQuantity required : 4 |
||||||
|
26 |
BEQUILLE LATERALE |
||||||
|
27 |
Plaque béquille; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/5/img/71435.jpg)
28 |
BUSH EN T (D8) OEM PIAGGIO COMMON A LA RANGE-AP8121114 More informationQuantity required : 1 |
||||||
|
29 |
Caoutchouc rappel béq. |
||||||
|
30 |
AP8121712-RESS. HEL. CYL. TRACT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/2/img/72302.jpg)
30 |
SPRING EXTERNE RAPPEL STAND (GROS SPRING) OEM PIAGGIO COMMON A LA RANGE-AP8221197 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/1/7/img/46617.jpg)
31 |
ROULETTE TENDEUR DE CHAIN OEM PIAGGIO 50 GILERASMT, RCR 2018 >/DERBI SENDA 2018 >/APRILIA SX, RX 2018 >-AP8120569 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/9/9/0/img/56990.jpg)
32 |
SPACER (14X10X6. 6) OEM COMMON A LA RANGE PIAGGIO/APRILIA-AP8221017 More informationQuantity required : 1 |
||||||
|
33 |
RADIATEUR EAU |
||||||
|
34 |
Caoutchouc |
||||||
|
35 |
DURITE EAU |
||||||
|
36 |
AP8102118-TUBE CUL. FITTING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/1/6/img/45116.jpg)
37 |
CAP VASE COOLING OEM APRILIA 50 SR H2O 1994 > 2012-AP8101912 More informationQuantity required : 1 |
||||||
|
38 |
AP8101910 - VASE D'EXPANSION More informationQuantity required : 1 |
||||||
|
39 |
AP8102110 - DURITE T More informationQuantity required : 1 |
||||||
|
40 |
RACCORD DURITE |
||||||
|
41 |
AP8101916 - "RACCORD EN ""T""" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/3/0/img/46930.jpg)
42 |
BUSH EN T OEM APRILIA COMMON A LA RANGE-AP8121731 More informationQuantity required : 2 |
||||||
|
43 |
ETRIER FIXATION RADIATEU |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
44 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 1 |
||||||
|
45 |
Support moteur pl. |
||||||
|
46 |
RESERVOIR HUILE |
||||||
|
46 |
*8230860 |
||||||
|
46 |
RESERVOIR HUILE |
||||||
|
47 |
AP8201192 - INDICATEUR RESERVE HUILE More informationQuantity required : 1 |
||||||
|
48 |
AP8220154-CAP TANK OIL More informationQuantity required : 1 |
||||||
|
49 |
AP8102594 - KIT SERRATURE More informationQuantity required : 1 |
||||||
|
49 |
Kit serrure |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/0/img/71400.jpg)
50 |
BUSH EN T OEM PIAGGIO COMMON A LA RANGE-AP8120508 More informationQuantity required : 1 |
||||||
|
51 |
KIT LOCK HATCH FUEL OEM PIAGGIO APRILIA 125 ATLANTIC, CLASSIC, EUROPA, LEONARDO, 50 RS-AP8104609 More informationQuantity required : 1 |
||||||
|
52 |
AP8102931-CABLE CASQUE: 8201298 More informationQuantity required : 1 |
||||||
|
53 |
RACCORD RADIATEUR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/1/2/0/img/49120.jpg)
54 |
PLATINE LATCH DE SEAT OEM PIAGGIO APRILIA 50 RS 1993 > 2005-AP8135260 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
55 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/3/4/img/46934.jpg)
56 |
AP8121764 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
57 |
ENTRETOISE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/7/img/71437.jpg)
58 |
SPRING DE MAINTIEN FOOTREST OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8121133 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/2/4/img/46624.jpg)
59 |
RUBBER FRAME OEM APRILIA 125 RS 2T 1995 > 2010-AP8120670 More informationQuantity required : 4 |
||||||
|
60 |
JOINT FIXATION |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/0/img/71170.jpg)
61 |
OIL TANK FILTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA 50-125 CC -AP8102224 More informationQuantity required : 1 |
||||||
|
61 |
FILTRE A HUILE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/6/img/71166.jpg)
62 |
FITTING FUEL A DEUX VOIES OEM PIAGGIO COMMON A LA RANGE-AP8101944 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/4/2/img/45142.jpg)
63 |
RUBBER/FITTING CANALISATION OIL OEM PIAGGIO COMMON A LA RANGE APRILIA 50-125-AP8102223 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/1/img/46921.jpg)
64 |
FITTING DE OIL FILTER OEM PIAGGIO APRILIA 125 PEGASO, AF1-AP8121702 More informationQuantity required : 1 |
||||||
|
65 |
RUBBER/FITTING CANALISATION OIL OEM PIAGGIO COMMON A LA RANGE APRILIA 50-125-AP8102223 More informationQuantity required : 1 |
||||||
|
66 |
|
||||||
|
67 |
Bloc fixat.selle+lev |
||||||
|
68 |
SUPPORT SERRURE SELLE |
||||||
|
69 |
TAMPON |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/5/4/img/57054.jpg)
70 |
WASHER EVENTAIL (D 19) DE LOCK OEM PIAGGIO COMMON A LA RANGE-AP8221312 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/6/8/img/50968.jpg)
71 |
NUT BAS (M19X1) OEM PIAGGIO COMMON A LA RANGE-AP8152194 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/8/5/img/55385.jpg)
72 |
WASHER EVENTAIL MOUNTING CROCHET DE LOCK OEM PIAGGIO APRILIA ATLANTIC 125-250-500 2003 > 2012, RS 125 2011 > 2017, RS 50 2006 > 2016, SR 50 1993 > 2014-AP8201748 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/1/img/72141.jpg)
73 |
SCREW CRUCIFORME (4X6) OEM PIAGGIO COMMON A LA RANGE-AP8201749 More informationQuantity required : 1 |
||||||
|
74 |
AP8202380 - TAPPO BENZINA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/8/0/img/45880.jpg)
75 |
MAIN SWITCH-STEERING LOCK "PIAGGIO GENUINE PART" APRILIA 50-125-250 RS 1995>1998, 50 RX 1995>2002, MX 2002>2003, 125-650 PEGASO, 125 FUTURA -AP8112710- More informationQuantity required : 1 |
