Vehicle Exploded View - APRILIA AF1 FUTURA 125 1990-1992
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

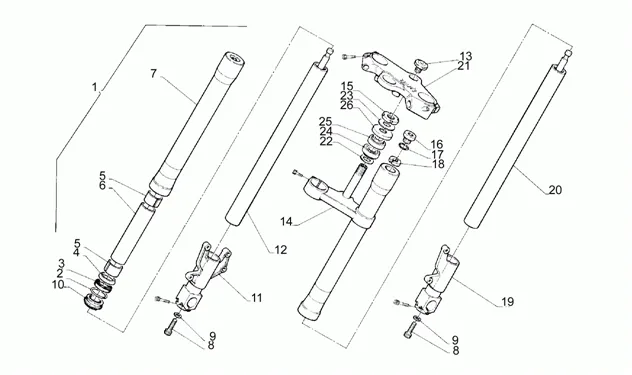

Chassis : 12 FOURCHE AV. M/N
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/232/AF1_Futura_125_1990-1992_12.PNG)
1 |
FOURCHE COMPLETE AF1 |
||||||
|
2 |
AP8123199 - BAGUE DE BUTEE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/8/5/img/67385.jpg)
3 |
OIL SEAL (40X52. 2X10/10. 5) DE FORK MARZOCCHI OEM PIAGGIO 500 X9/APRILIA 50-125-250 RS, 500 ATLANTIC, 650 PEGASO/GILERA 500 NEXUS/MOTO-GUZZI 750 BREVA, NEVADA, V7-599501 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/1/1/img/71511.jpg)
3 |
FORK OIL SEAL (40X52/7,5X10) "PIAGGIO GENUINE PART" APRILIA 125 AF1 -AP8123200 More informationQuantity required : 2 |
||||||
|
4 |
GU30528161 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
4 |
Circlip d'arrêt douille |
||||||
|
5 |
Douille de coulissement |
||||||
|
6 |
|
||||||
|
7 |
FOURREAU FOURCHE |
||||||
|
8 |
AP8123216-SCREW More informationQuantity required : 2 |
||||||
|
9 |
GASKET/WASHER ETANCHEITE VIDANGE DE FORK OEM PIAGGIO COMMON A LA RANGE-AP8123206 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/8/6/img/67386.jpg)
10 |
PROTECTOR POUSSIERE FORK OEM PIAGGIO APRILIA 50-125-250 RS/DERBI SENDA (MARZOCCHI) 2003 > 2011/MOTO-GUZZI V7, BREVA NEVADA-599502 More informationQuantity required : 2 |
||||||
|
11 |
MOYEU DROIT*8123791 (PL) |
||||||
|
12 |
Tube fourche d. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/6/4/img/50864.jpg)
13 |
AP8150352 - BOUCHON TUBE More informationQuantity required : 1 |
||||||
|
14 |
TE INFERIEUR DE FOURCHE |
||||||
|
15 |
AP8203588-BUSH LOWER FORK * More informationQuantity required : 1 |
||||||
|
16 |
AP8123210 - VIS More informationQuantity required : 2 |
||||||
|
17 |
BAGUE |
||||||
|
18 |
DEMI RONDELLE |
||||||
|
19 |
Support gauche roue + tu |
||||||
|
20 |
Support gauche roue + tu |
||||||
|
21 |
AP8123215 - TE SUP RS125 95=8123097 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/9/5/img/45095.jpg)
22 |
WASHER PLATE (25X51X1) OEM PIAGGIO COMMON A LA RANGE-AP8101271 More informationQuantity required : 1 |
||||||
|
23 |
AP8101272-ANNEAU BRACKET PROTECTOR-POUSSIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/6/6/img/71266.jpg)
24 |
BEARING DE STEERING OEM PIAGGIO APRILIA 50-125-250 RS 1995 >, 50-125 RX, SX 1995 >, 50-125 CLASSIC, 50-125 MX 2004 >, 125 PEGASO 1991 > 1994, 650 PEGASO 1992 > 2004-AP8110024 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/1/7/img/45817.jpg)
25 |
BEARING STEERING UPPER OEM PIAGGIO APRILIA 50-125 RS, RX, SX, TUONO, AF1, CLASSIC, PEGASO-AP8110025 More informationQuantity required : 1 |
||||||
|
26 |
AP8120542 - PARE-POUSSIERE More informationQuantity required : 1 |
