Vehicle Exploded View - APRILIA AF1 FUTURA 125 1990-1992
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

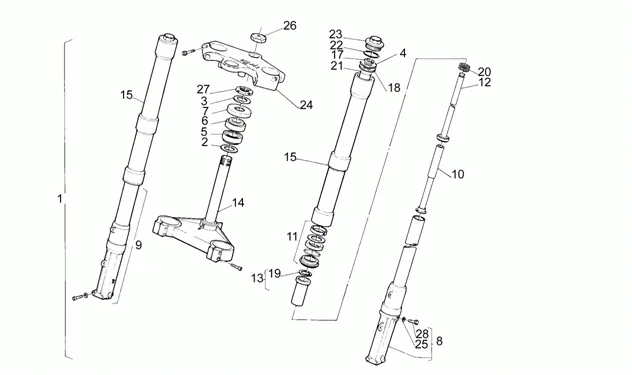

Chassis : 11 FOURCHE AV. L
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/232/AF1_Futura_125_1990-1992_11.PNG)
1 |
FOURCHE CPL. =8123069 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/9/5/img/45095.jpg)
2 |
WASHER PLATE (25X51X1) OEM PIAGGIO COMMON A LA RANGE-AP8101271 More informationQuantity required : 1 |
||||||
|
3 |
AP8101272-ANNEAU BRACKET PROTECTOR-POUSSIERE More informationQuantity required : 1 |
||||||
|
4 |
RONDELLE INFERIEURE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/6/6/img/71266.jpg)
5 |
BEARING DE STEERING OEM PIAGGIO APRILIA 50-125-250 RS 1995 >, 50-125 RX, SX 1995 >, 50-125 CLASSIC, 50-125 MX 2004 >, 125 PEGASO 1991 > 1994, 650 PEGASO 1992 > 2004-AP8110024 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/1/7/img/45817.jpg)
6 |
BEARING STEERING UPPER OEM PIAGGIO APRILIA 50-125 RS, RX, SX, TUONO, AF1, CLASSIC, PEGASO-AP8110025 More informationQuantity required : 1 |
||||||
|
7 |
AP8120542 - PARE-POUSSIERE More informationQuantity required : 1 |
||||||
|
8 |
BRAS DE FOURCHE G. |
||||||
|
9 |
Bras fourche dr |
||||||
|
10 |
AP8103902 - PLONGEUR More informationQuantity required : 2 |
||||||
|
11 |
Joint spy 38/48/10 |
||||||
|
12 |
BRAS DE FOURCHE |
||||||
|
13 |
AP8103905 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
14 |
TE INFERIEUR |
||||||
|
15 |
FOURREAU FOURCHE (PL) |
||||||
|
17 |
AP8103909 - ANNEAU DE FERMETURE More informationQuantity required : 2 |
||||||
|
18 |
RONDELLE INFERIEURE |
||||||
|
19 |
AP8103911 - SEEGER More informationQuantity required : 2 |
||||||
|
20 |
RESSORT DE FOURCHE |
||||||
|
21 |
C/C FIN DE COURSE |
||||||
|
22 |
AP8103914 - JT.TORIQUE BOUCHON FOURC More informationQuantity required : 2 |
||||||
|
23 |
AP8103915 - BOUCHON DE FOURCHE More informationQuantity required : 2 |
||||||
|
24 |
AP8123215 - TE SUP RS125 95=8123097 More informationQuantity required : 1 |
||||||
|
25 |
RONDELLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/6/4/img/50864.jpg)
26 |
AP8150352 - BOUCHON TUBE More informationQuantity required : 1 |
||||||
|
27 |
ECROU |
||||||
|
28 |
VIS TE (PL) |
