Eclatés de véhicule - APRILIA SR 125 STORM TT BSIV NOABS 2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

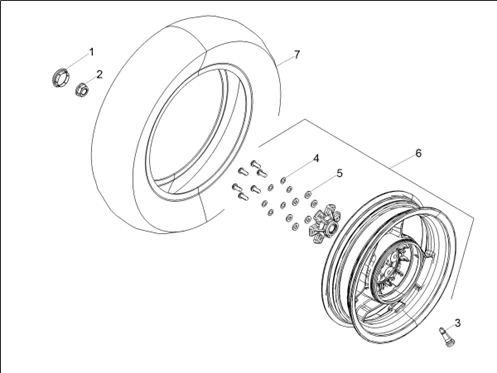

Cadre : 02.20 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1246/SR_125_STORM_TT_BSIV_NOABS_2020_(EMEA)_02.20.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/9/3/2/img/89932.jpg)
1 |
BOUCHON ESSIEU ROUE ORIGINE PIAGGIO COMMUN A LA GAMME -665657 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/2/4/3/img/164243.jpg)
2 |
ECROU DE ROUE ARRIERE ORIGINE APRILIA 50 SXR 2021> -1C002806 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
3 |
VALVE TUBELESS ORIGINE PIAGGIO COMMUN A LA GAMME -270991 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
4 |
RONDELLE ELASTIQUE COURBE (8.4X15X0.8) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -709047 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/9/8/img/68798.jpg)
5 |
RONDELLE PLATE (8,2X17X2,5) ORIGINE PIAGGIO COMMUN A LA GAMME -828961 Plus d'informationsQuantité requise : 6 |
||||||
6 |
1C004699 - ROUE AR Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
PNEU ARRIERE MAXXIS 130/80-12 MONTE ORIGINE PIAGGIO 50 2010> -666006 Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
1C000446 - PNEU 120/80-12 Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
666720 - PNEU 130/80-12" VEE RUBBER Plus d'informationsQuantité requise : 1 |
