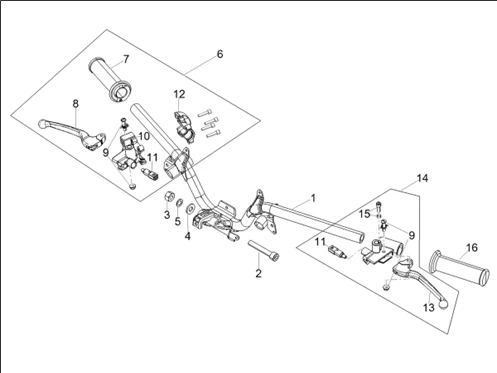

Cadre : 02.15 GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1246/SR_125_STORM_TT_BSIV_NOABS_2020_(EMEA)_02.15.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/2/2/0/img/164220.jpg)
1 |
GUIDON ORIGINE PIAGGIO 50 TYPHOON 2018>/APRILIA 50 SR MOTARD 2018> -SP1B006076 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/2/9/4/img/68294.jpg)
2 |
VIS BTR (10X65) ORIGINE PIAGGIO COMMUN A LA GAMME -655554 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/8/img/65378.jpg)
3 |
ECROU (M10) ORIGINE PIAGGIO COMMUN A LA GAMME -015330 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/0/img/65350.jpg)
4 |
RONDELLE CRANTEE (10.3X17X2) ORIGINE PIAGGIO COMMUN A LA GAMME -012543 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
5 |
RONDELLE PLATE (10.3X22X2.5) ORIGINE PIAGGIO COMMUN A LA GAMME -178790 Plus d'informationsQuantité requise : 1 |
||||||
6 |
1C004372 - MANCHON COMMANDE ACCELERATEUR COMPLET Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/3/9/img/66139.jpg)
7 |
REVETEMENT/POIGNEE DROITE ORIGINE PIAGGIO 50-125 FLY, VESPA LX, VESPA-S, TYPHOON, 50 ZIP, NRG/APRILIA 50 SR MOTARD, SPORT-CITY -274491 Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
1C004402 - LEVIER DROIT Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
|
||||||
|
10 |
1C004727 - CAVALIER AV. COMMANDE GAZ - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
1D002507 - BOUTON STOP Plus d'informationsQuantité requise : 2 |
||||||
|
12 |
1C004728 - CAVALIER AR. COMMANDE GAZ - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/7/1/img/152871.jpg)
13 |
LEVIER DE FREIN GAUCHE ORIGINE PIAGGIO 50 TYPHOON 2018/APRILIA 50 SR MOTARD 2018> -667387 Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
1C004257 - MANCHON AVEC LEVIER DE FREIN ARRIERE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/8/img/65718.jpg)
15 |
VIS BTR (6X17) AVEC DOUILLE ORIGINE PIAGGIO COMMUN A LA GAMME -123394 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/3/8/img/66138.jpg)
16 |
REVETEMENT/POIGNEE GAUCHE ORIGINE PIAGGIO 50-125 FLY, VESPA LX, VESPA-S, TYPHOON, 50 ZIP, NRG/APRILIA 50 SR MOTARD, SPORT-CITY -274489 Plus d'informationsQuantité requise : 1 |
