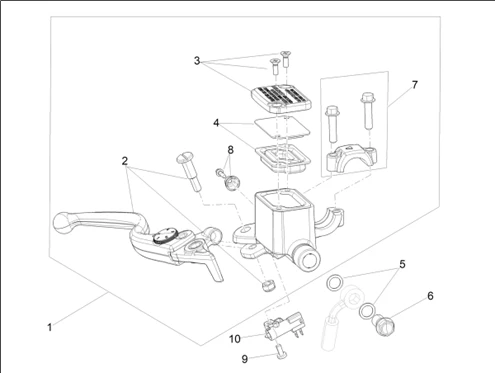

Système de freinage : 06.01 MAÎT. CYL. FREIN AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1360/RS_457_E5_GP_REPLICA_2026_EMEA_06.01.png)
1 |
2B012778 - MAITRE-CYLINDRE DE FREIN AVANT Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
2B012826 - LEV. FR. AV. Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
2B012824 - CARTER DE MAITRE-CYLINDRE Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
2B012827 - MEMBRANE COMPLETE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
5 |
JOINT CUIVRE (10X16X1) ETRIER DE FREIN ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -127927 Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
2B011672R - SPECIAL SCREW Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
2B013041 - CAVALIER LEVIER FREIN Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
2B013042 - COIFFE PPE FREIN AV. Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
664194 METRICAL SCREW CYLINDRICAL HEAD WITH CR Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
2D000787 - BOUTON STOP Plus d'informationsQuantité requise : 1 |
