Eclatés de véhicule - APRILIA RS 457 E5+ GP REPLICA 2026 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

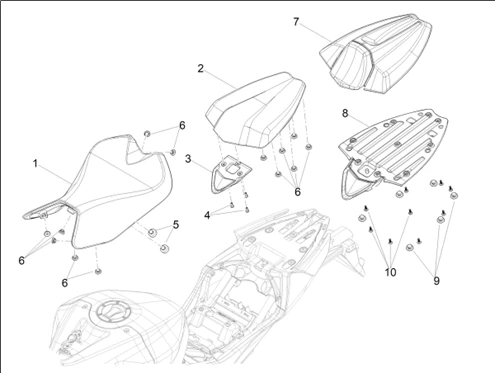

Carrosserie : 02.12 SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1360/RS_457_E5_GP_REPLICA_2026_EMEA_02.12.png)
1 |
2B010927000C1 - SELLE PILOTE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
2B010925000C1 - SELLE PASSAGER Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
2B011137 - BUTÃ-E SELLE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
4 |
VIS CRUCIFORME (5X15) TARAUD ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150509 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/4/6/img/127146.jpg)
5 |
TAMPON DE SELLE ORIGINE APRILIA 1000-1100 RSV4 2009> -B043941 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/1/9/1/img/62191.jpg)
6 |
TAMPON CAOUTCHOUC DE SELLE ORIGINE APRILIA 1000-1100 RSV4, TUONO -B043933 Plus d'informationsQuantité requise : 13 |
||||||
|
7 |
TAMPON CAOUTCHOUC DE SELLE ORIGINE APRILIA 1000-1100 RSV4, TUONO -B043933 Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
|
||||||
|
9 |
TAMPON CAOUTCHOUC DE SELLE ORIGINE APRILIA 1000-1100 RSV4, TUONO -B043933 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
10 |
VIS TORX (4,2X13) AUTOTARAUDEUSE ORIGINE PIAGGIO COMMUN A LA GAMME -CM178603 Plus d'informationsQuantité requise : 9 |
