Eclatés de véhicule - PIAGGIO MP3 300 LT BUSINESS - SPORT ABS 2014 - 2015 EMEA
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

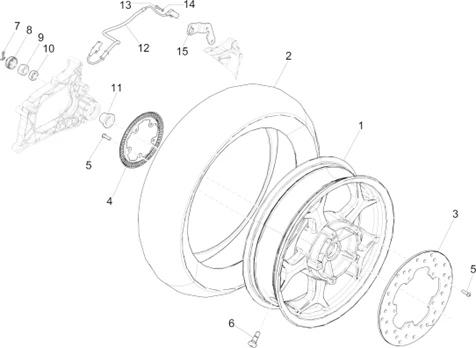

Suspensions - roues : 04.12 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1229/MP3_300_LT_BUSINESS_-_SPORT_ABS_2014_-_2015__EMEA_04.12.png)
1 |
1C001055 - ROUE ARR. 3.75 X 14" * Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
1C001192 - ROUE AR. 3.75 X 14" Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
CM319116 - TYRE 140 60 14 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/8/7/img/67087.jpg)
3 |
DISQUE DE FREIN MAXISCOOTER ORIGINE PIAGGIO 125-250-400 MP3, X8, X-EVO, 400-500 BEVERLY, 500 X9, 125-350 X10/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX ARRIERE -56498R Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/9/8/img/78098.jpg)
4 |
COURONNE ABS ARRIERE ORIGINE PIAGGIO 300-500 MP3 2014> -2B000624 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/3/6/img/68436.jpg)
5 |
VIS BTR TETE BOMBEE (6X20) AVEC FREIN FILET ORIGINE PIAGGIO COMMUN A LA GAMME -667152 Plus d'informationsQuantité requise : 10 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/0/img/67350.jpg)
6 |
VALVE TUBELESS ORIGINE PIAGGIO COMMUN A LA GAMME -597679 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/5/img/65355.jpg)
7 |
GOUPILLE SECURITE ECROU DE ROUE ARRIERE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME SCOOTER ET MAXISCOOTER -012789 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/9/6/5/0/img/189650.jpg)
8 |
CAGE FIXATION ECROU DE ROUE ARRIERE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME SCOOTER ET MAXISCOOTER -1C004746 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/3/5/img/67035.jpg)
9 |
ECROU (M16) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -563728 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/4/6/img/67346.jpg)
10 |
ENTRETOISE (17X25X8.4) DE ROUE ARRIERE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125 A 500 CC -597528 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/5/5/img/69555.jpg)
11 |
ENTRETOISE DE ROUE ARRIERE ORIGINE PIAGGIO COMMUN A LA GAMME -848039 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/5/7/9/img/198579.jpg)
12 |
CAPTEUR DE FREIN ARRIERE ABS ORIGINE PIAGGIO 125-300 GTS 2016>/400-530 MP3 2022> PORTER E4 2010> -1D003828 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/6/6/8/img/120668.jpg)
12 |
CAPTEUR ABS FREIN ARRIERE ORIGINE PIAGGIO 300-350-400-500 MP3 2015>, PORTER E4 2010> -B000526 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/4/5/img/139445.jpg)
13 |
VIS TORX (5X16) ORIGINE PIAGGIO COMMUN A LA GAMME -B0167965 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/5/3/8/img/90538.jpg)
14 |
RONDELLE PLATE (6X8.5X.05) ORRIGINE PIAGGIO COMMUN A LA GAMME -669282 Plus d'informationsQuantité requise : 1 |
|||||||||
|
15 |
1C002566 - PATTE Plus d'informationsQuantité requise : 1 |
|||||||||
|
15 |
1C001004 - SUPPORT Plus d'informationsQuantité requise : 1 |
|||||||||
