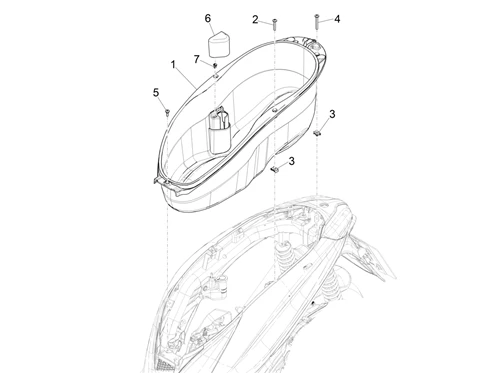

Châssis - parties plastiques - carrosseries : 02.34 LOGEMENT CASQUE - DESSOUS DE SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/963/Medley_125_4T_ie_ABS_E4_2020_(EMEA)_02.34.png)
1 |
COFFRE A CASQUE ORIGINE PIAGGIO 125 MEDLEY 2016> -1B006371 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/9/img/73369.jpg)
2 |
VIS TORX (6X40) TETE BOMBEE ORIGINE PIAGGIO COMMUN A LA GAMME -CM179304 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
3 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
4 |
VIS TORX (6X22) CARENAGE ORIGINE PIAGGIO COMMUN A LA GAMME -CM179201 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/9/0/img/96290.jpg)
5 |
VIS TORX (6X55) ORIGINE PIAGGIO COMMUN A LA GAMME -CM179306 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
1B002268 - PROTECTION Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/4/img/73404.jpg)
7 |
AGRAPHE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -D9004468091 Plus d'informationsQuantité requise : 1 |
