Eclatés de véhicule - PIAGGIO FLY 50 2T 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

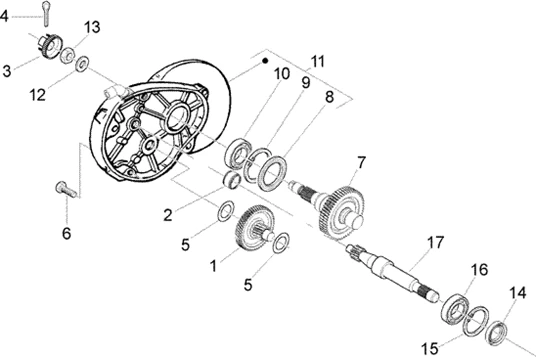

Moteur : T9 ARBRE ROUE AR.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/361/Fly_50_2T_1998-2005_T9.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/0/3/img/69303.jpg)
1 |
ARBRE INTERMEDIAIRE DE TRANSMISSION ORIGINE PIAGGIO 50 FLY 2T -8438685 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/4/8/img/66548.jpg)
2 |
BAGUE DE COMPENSATION SUR ARBRE DE POULIE RECEPTRICE ORIGINE PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD -478197 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/9/6/5/0/img/189650.jpg)
3 |
CAGE FIXATION ECROU DE ROUE ARRIERE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME SCOOTER ET MAXISCOOTER -1C004746 Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
CAGE FIXATION ECROU DE ROUE ARRIERE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME SCOOTER ET MAXISCOOTER -1C004746 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/5/img/65355.jpg)
4 |
GOUPILLE SECURITE ECROU DE ROUE ARRIERE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME SCOOTER ET MAXISCOOTER -012789 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/9/6/img/66196.jpg)
5 |
RONDELLE PLATE (16X26X1) ARBRE INTERMEDIAIRE DE TRANSMISSION ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC -288639 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/3/0/img/72730.jpg)
6 |
VIS BRIDE TH (8X45) ORIGINE PIAGGIO COMMUN A LA GAMME -B016805 Plus d'informationsQuantité requise : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/0/4/img/69304.jpg)
7 |
AXE ROUE ARRIERE ORIGINE PIAGGIO 50 FLY 2T 2011< -8438705 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/5/8/img/66558.jpg)
8 |
JOINT SPI (30X47X6) AXE DE ROUE ORIGINE PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD, SPORT-CITY -478498 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/5/img/63825.jpg)
9 |
CLIPS/CIRCLIPS (47X50.5X1.75) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -006647 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/5/9/img/66459.jpg)
10 |
ROULEMENT (20X47X14)AXE DE POULIE RECEPTRICE ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC -434735 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/4/9/img/72649.jpg)
11 |
CARTER DE REDUCTEUR DE TRANSMISSION ORIGINE PIAGGIO 50 TYPHOON 2010>, FLY 2005>, LIBERTY 2005>, VESPA PRIMAVERA 2013>, SPRINT 2014>/APRILIA 50 SCARABEO 2005>, SR MOTARD 2010> -1A016446 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/7/img/65757.jpg)
12 |
RONDELLE PLATE (16X34X2) ORIGINE PIAGGIO COMMUN A LA GAMME -159347 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/3/5/img/67035.jpg)
13 |
ECROU (M16) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -563728 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/9/0/img/66590.jpg)
14 |
JOINT SPI (17X28X5) AXE POULIE EMBRAYAGE ORIGINE PIAGGIO 50 FLY, LIBERTY, NRG, TYPHOON, ZIP/ GILERA 50 STALKER, RUNNER/APRILIA 50 SR,SPORT CITY ONE/VESPA LX, SPRINT, PRIMAVERA -480066 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/0/4/img/66604.jpg)
15 |
CIRCLIPS ARBRE ORIGINE PIAGGIO COMMUN A LA GAMME -480953 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/7/3/img/66473.jpg)
16 |
ROULEMENT (17X40X12) AXE POULIE RECEPTRICE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME SCOOTER 50 CC -435363 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/0/1/img/66601.jpg)
17 |
ARBRE DE POULIE ORIGINE RECEPTRICE PIAGGIO 50 FLY 2T 2000>, FLY 4T 2006>, LIBERTY 2T 2000>, TYPHOON 2011>VESPA PRIMAVERA 4T 2012>/APRILIA SR MOTARD 2T 2012>, SPORT-CITY 2T 2008> -480848 Plus d'informationsQuantité requise : 1 |
