Eclatés de véhicule - PIAGGIO FLY 50 2T 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

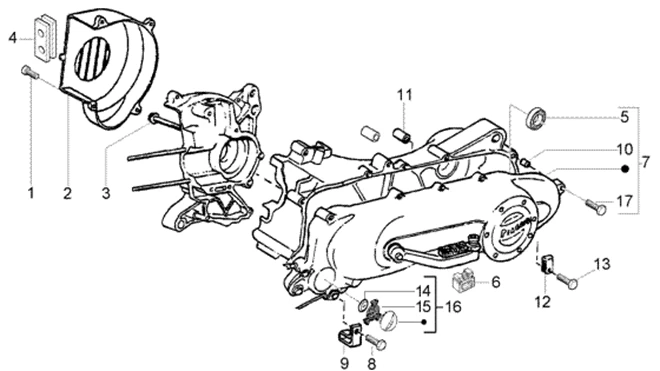

Moteur : T6 COUVERCLE TRANSMISSION-COUVERCLE LIMAÇON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/361/Fly_50_2T_1998-2005_T6.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/9/img/65399.jpg)
1 |
VIS CRUCIFORME (5X21) ORIGINE PIAGGIO COMMUN A LA GAMME -015856 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/8/9/img/69089.jpg)
2 |
COUVERCLE ALLUMAGE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME SCOOTER 50 CC 2T -833817 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/6/9/img/72769.jpg)
3 |
VIS BRIDE TH (6X45) ORIGINE PIAGGIO COMMUN A LA GAMME -B017632 Plus d'informationsQuantité requise : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/6/9/img/68669.jpg)
4 |
PASSE-CABLE CAOUTCHOUC ORIGINE PIAGGIO COMMUN A LA GAMME -827425 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/2/4/img/68524.jpg)
5 |
ROULEMENT (28X8X9) CARTER TRANSMISSION ORIGINE PIAGGIO 50 TYPHOON, NRG, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX -82521R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/9/img/66039.jpg)
6 |
TAMPON DE BEQUILLE CENTRALE ORIGINE PIAGGIO 50 FLY, LIBERTY, TYPHOON, ZIP, VESPA LX, VESPA-S/APRILIA 50 SR, SPORT-CITY, SCARABEO -259625 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/7/img/68557.jpg)
7 |
COUVERCLE TRANSMISSION ORIGINE PIAGGIO GILERA 50 DNA 2002> -8256465 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
8 |
VIS BRIDE TH (6X35) ORIGINE PIAGGIO COMMUN A LA GAMME -414838 Plus d'informationsQuantité requise : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/7/8/img/67078.jpg)
9 |
COLLIER ORIGINE PIAGGIO COMMUN A LA GAMME -564761 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/1/7/img/66417.jpg)
10 |
BAGUE/DOUILLE BRONZE 8X12X8 ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER ET MAXISCOOTER -431860 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/6/7/img/66167.jpg)
11 |
BAGUE AXE DE KICK ORIGINE PIAGGIO 50 FLY 2T, LIBERTY 2T, NRG, TYPHOON, VESPA LX 2T/GILERA 50 STALKER, RUNNER -286209 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/5/9/img/67059.jpg)
12 |
PLAQUETTE DE MAINTIEN DU CABLE DE FREIN SUR CARTER MOTEUR ORIGINE PIAGGIO FLY, LIBERTY, TYPHOON, NRG, ZIP, VESPA LX, SPRINT, S -564497 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
13 |
VIS BRIDE TH (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME/KICK DERBI 50 SENDA -B016774 Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
VIS BRIDE TH (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME/KICK DERBI 50 SENDA -B016774 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/7/img/65797.jpg)
14 |
PLAQUETTE ELASTIQUE ORIGINE PIAGGIO COMMUN A LA GAMME -181351 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/0/1/img/68601.jpg)
15 |
FILTRE COUVERCLE DE BOITIER RECYCLAGE DES GAZ ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC -826462 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/8/3/img/69583.jpg)
16 |
BOUCHON/OBTURATEUR DE COUVERCLE TRANSMISSION ORIGINE PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD -848860 Plus d'informationsQuantité requise : 1 |
