Vehicle Exploded View - VESPA VESPA SPRINT 50 4T 3V E5 2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

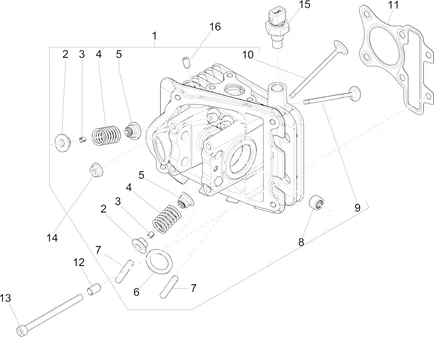

Moteur : 01.10 ENSEMBLE CULASSE - SOUPAPES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1008/Vespa_Sprint_50_4T_3V_E5_2020_(EMEA)_01.10.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/6/9/0/img/174690.jpg)
1 |
CYLINDER HEAD COMPLETE (COMPATIBLE WITH LE CYLINDER 1A018505) OEM PIAGGIO 50 4T LIBERTY, ZIP, PRIMAVERA, SPRINT EURO 5 2021 >-1A016015 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/0/8/img/70408.jpg)
2 |
WASHER CUP SUPERIEURE VALVE OEM PIAGGIO 50 4T LIBERTY, ZIP, SPRINT, PRIMAVERA 2015 >-871889 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/7/8/img/69278.jpg)
3 |
HALF CLAVETTE DE VALVE OEM PIAGGIO 50-125 COMMON ALA RANGE-843338 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/7/6/img/69376.jpg)
4 |
SPRING DE VALVE OEM PIAGGIO 50 4T LIBERTY, ZIP, PRIMAVERA 2013 >/SXR APRILIA 2021 >-845951 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/5/7/2/img/139572.jpg)
5 |
CUP VALVE LOWER OEM PIAGGIO 50 LIBERTY, ZIP, PRIMAVERA, SPRINT 4T E4/E5-1A004845 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/6/8/img/69368.jpg)
6 |
GASKET EXHAUST OEM PIAGGIO 50 FLY 4T, LIBERTY 4T, ZIP 4T, VESPA LX 4T, PRIMAVERA 4T, SPRINT 4T-845776 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/1/img/65411.jpg)
7 |
STUD (6X37) OEM PIAGGIO COMMON A LA RANGE-016060 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/2/1/0/img/127210.jpg)
8 |
BEARING AIGUILLE (9X13X8) DE CULLASSE OEM PIAGGIO 50 4T ZIP, PRIMAVERA, LIBERTY, SXR 2017 >-1A000511 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/2/4/0/img/127240.jpg)
9 |
VALVE INTAKE OEM PIAGGIO 50 4T LIBERTY, ZIP, PRIMAVERA, SPRINT 2017 >-1A003878 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/2/3/5/img/127235.jpg)
10 |
VALVE EXHAUST OEM PIAGGIO 50 4T LIBERTY, ZIP, PRIMAVERA, SPRINT 2017 >-1A003803 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/3/5/img/70435.jpg)
11 |
CYLINDER HEAD GASKET OEM PIAGGIO 50 ZIP 4T, FLY 4T, LIBERTY 4T, VESPA LX 4T, PRIMAVERA 4T, VESPA-S 4T, SPRINT 4T 4 SOUPAPES-872627 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
12 |
PION DE CENTRAGE (7, 5X12) OEM PIAGGIO COMMON A LA RANGE-277916 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/7/img/66337.jpg)
13 |
SCREW BTR (6X80) OEM PIAGGIO COMMON A LA RANGE-319242 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/4/0/img/70940.jpg)
14 |
NUT FLANGE (D6) DE CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE-969224 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/8/1/2/img/81812.jpg)
15 |
SONDE DE TEMPERATURE OEM PIAGGIO 125 FLY, LIBERTY, VESPA LX, 50 ZIP, PRIMAVERA, SPRINT, MP3I-58273R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/2/6/img/69226.jpg)
16 |
CAP 6X10 CASING OEM PIAGGIO COMMON A LA RANGE-842360 More informationQuantity required : 1 |
