Vehicle Exploded View - VESPA VESPA SPRINT 50 4T 3V E5 2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

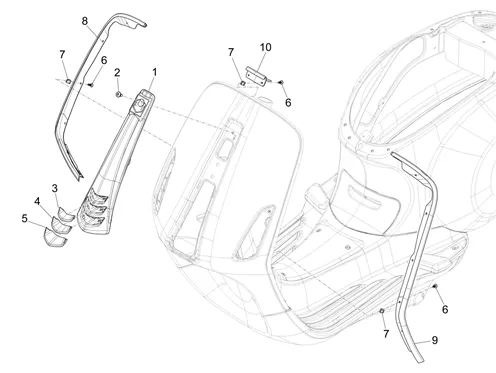

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1008/Vespa_Sprint_50_4T_3V_E5_2020_(EMEA)_02.26.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/3/7/0/0/img/153700_20260429162933.jpg)
1 |
COVER COLONNE DE STEERING OEM PIAGGIO 50-125 VESPA PRIMAVERA, SPRINT 2013 > BLACK 99/C-1B005209000NV More informationQuantity required : 1 |
||||||
1 |
1B005209000D03-COVER-STEERING More informationQuantity required : 1 |
||||||
|
1 |
1B005209000HQ-COVER-STEERING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/3/2/9/img/151329.jpg)
1 |
COVER COLONNE DE STEERING (SERIE B) OEM PIAGGIO 50-125 VESPA PRIMAVERA, SPRINT 2013 > WHITE 544-1B005209000BR More informationQuantity required : 1 |
||||||
|
1 |
1B00520900090-COVER-STEERING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/3/3/0/img/151330.jpg)
1 |
COVER COLONNE DE STEERING (SERIE B) OEM PIAGGIO 50-125 VESPA PRIMAVERA, SPRINT 2013 > RED 894-1B005209000R7 More informationQuantity required : 1 |
||||||
|
1 |
1B005209000LD-COVER-STEERING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/3/2/7/img/151327.jpg)
1 |
COVER COLONNE DE STEERING (SERIE B) OEM PIAGGIO 50-125 VESPA PRIMAVERA, SPRINT 2013 > UNPAINTED-1B005209 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/5/img/73365.jpg)
2 |
SCREW TORX (6X16) WITH EPAULEMENT OEM PIAGGIO COMMON A LA RANGE-CM179202 More informationQuantity required : 1 |
||||||
|
3 |
CM297810 ORNEMENT UPPER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/3/3/2/img/151332_20251023145854.jpg)
3 |
STICKER/STICKER/GRAPHIC FRONT PANEL FRONT SUPERIEURE OEM PIAGGIO 125 VESPA SPRINT 2016 >-CM2978045 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/3/3/3/img/151333_20251023145858.jpg)
3 |
ORNEMENT CHROME UPPER FRONT PANEL FRONT OEM PIAGGIO 50-125 PRIMAVERA, SPRINT 2017 >-1B005290 More informationQuantity required : 1 |
||||||
|
4 |
CM297710 ORNEMENT CENTRAL More informationQuantity required : 1 |
||||||
|
4 |
DECO FRONT PANEL FRONT CENTRAL OEM PIAGGIO 125 VESPA SPRINT 2016 >-CM2977045 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/3/3/5/img/151335.jpg)
4 |
ORNEMENT CHROME CENTRAL FRONT PANEL FRONT OEM PIAGGIO 50-125 PRIMAVERA, SPRINT 2017 >-1B005291 More informationQuantity required : 1 |
||||||
|
5 |
CM297510 ORNEMENT LOWER More informationQuantity required : 1 |
||||||
|
5 |
CM2975045-DECORATIONS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/3/3/7/img/151337.jpg)
5 |
ORNEMENT CHROME LOWER FRONT PANEL FRONT OEM PIAGGIO 50-125 PRIMAVERA, SPRINT 2017 >-1B005292 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
6 |
SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603 More informationQuantity required : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/2/img/65832.jpg)
7 |
AGRAPHE/CHEVILLE A EXPANSION OEM PIAGGIO COMMON A TOUTE LE RANGE-199190 More informationQuantity required : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/3/6/8/img/91368_20260413172131.jpg)
8 |
BORDURE DE LEG SHIELD FRONT RIGHT CHROME OEM PIAGGIO VESPA 50-125 PRIMAVERA 2013 >, SPRINT 2014 >-673639 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/1/3/3/img/178133.jpg)
8 |
BORDURE DE LEG SHIELD FRONT RIGHT MATTE BLACK OEM PIAGGIO 50-125 VESPA PRIMAVERA, SPRNT 2017 >-1B004183 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/3/6/7/img/91367_20260413172128.jpg)
9 |
BORDURE DE LEG SHIELD FRONT LEFT CHROME OEM PIAGGIO 50-125 VESPA SPRINT 2014 >, PRIMAVERA 2013 >-673638 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/1/3/4/img/178134.jpg)
9 |
BORDURE DE LEG SHIELD FRONT LEFT BLACK MATT OEM PIAGGIO 50-125 VESPA PRIMAVERA, SPRNT 2017 >-1B004182 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/5/7/7/img/91577.jpg)
10 |
BORDURE DE LEG SHIELD CENTRE CHROME OEM PIAGGIO 50-125 VESPA SPRINT 2014 >, PRIMAVERA 2013 >-674145 More informationQuantity required : 1 |
||||||
|
10 |
1B004184 BORDURE LEG SHIELD More informationQuantity required : 1 |
