Vehicle Exploded View - VESPA VESPA SPRINT 50 4T 3V 25 kmh E4 2017-2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

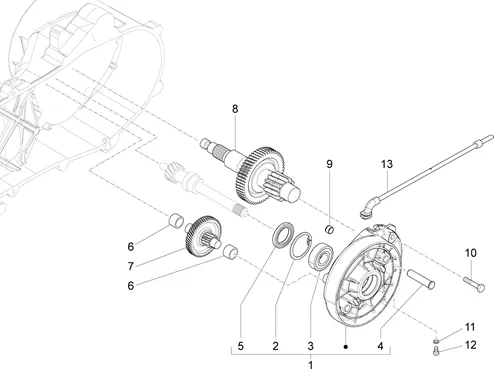

Moteur : 01.25 ENSEMBLE RÉDUCTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/813/Vespa_Sprint_50_4T_3V_25_kmh_E4_2017-2018_(EMEA)_01.25.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/4/9/img/72649.jpg)
1 |
CASING DE REDUCTEUR DE TRANSMISSION OEM PIAGGIO 50 TYPHOON 2010 >, FLY 2005 >, LIBERTY 2005 >, VESPA PRIMAVERA 2013 >, SPRINT 2014 >/APRILIA 50 SCARABEO 2005 >, SR MOTARD 2010 >-1A016446 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/5/img/63825.jpg)
2 |
CLIPS/CIRCLIPS (47X50. 5X1. 75) OEM PIAGGIO COMMON A TOUTE LA RANGE-006647 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/5/9/img/66459.jpg)
3 |
BEARING (20X47X14) SHAFT OF PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-434735 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/0/img/66120.jpg)
4 |
PIVOT OEM PIAGGIO COMMON A LA RANGE-272921 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/5/8/img/66558.jpg)
5 |
OIL SEAL (30X47X6) WHEEL SPINDLE OEM PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD, SPORT-CITY-478498 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/9/6/img/66196.jpg)
6 |
WASHER PLATE (16X26X1) SHAFT INTERMEDIAIRE DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288639 More informationQuantity required : 2 |
||||||
7 |
8282385 - ARBRE DE RENVOI More informationQuantity required : 1 |
||||||
|
8 |
8299355-WHEEL SPINDLE REAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/4/8/img/66548.jpg)
9 |
BUSH OF COMPENSATION ON SHAFT DE PULLEY RECEPTRICE OEM PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD-478197 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/3/0/img/72730.jpg)
10 |
SCREW FLANGE TH (8X45) OEM PIAGGIO COMMON A LA RANGE-B016805 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
11 |
GASKET OF VIDANGE CASING DE TRANSMISSION (8, 2X12X1) OEM PIAGGIO COMMON A TOUTE LA RANGE-485703-X000D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/5/img/66085.jpg)
12 |
SCREW BTR (8X12) OEM PIAGGIO COMMON A LA RANGE-269755 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/3/5/img/73335.jpg)
13 |
TUBE/CONDUIT DE PURGE ORIGINIE PIAGGIO COMMON A LA RANGE-CM162202 More informationQuantity required : 1 |
