Vehicle Exploded View - VESPA VESPA SPRINT 50 4T 3V 25 kmh E4 2017-2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

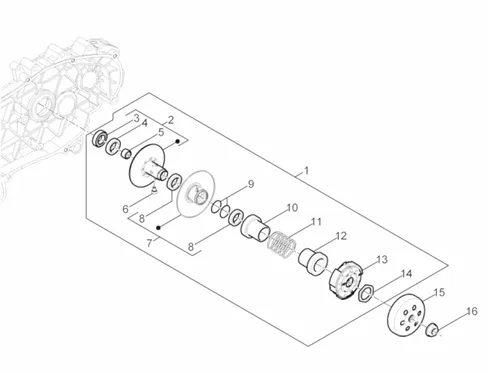

Moteur : 01.14 POULIE ENTRAINEE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/813/Vespa_Sprint_50_4T_3V_25_kmh_E4_2017-2018_(EMEA)_01.14.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/6/8/1/img/140681.jpg)
1 |
PULLEY CLUTCH COMPLETE OEM PIAGGIO 50 LIBERTY, ZIP, PRIMAVERA, SPRINT 4T EURO4, EURO5 2018 >/APRILIA 50 SXR 2021 >-CM270403 More informationQuantity required : 1 |
||||||
2 |
HALF PULLEY OEM PIAGGIO (25KM/H) COMMON A LA RANGE SCOOTER 50 CC-4795526 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/0/8/img/68608.jpg)
3 |
BEARING (12X24X6) DE PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T ET 4T-82655R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/0/img/63820.jpg)
4 |
CLIPS/CIRCLIPS OEM PIAGGIO COMMON A LA RANGE 27M-006624 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/3/8/img/66238.jpg)
5 |
CAGE A AIGUILLES/BUSH DE PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-289952 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/2/2/img/66622.jpg)
6 |
PIVOT/GUIDE PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-482766 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/1/5/img/68715.jpg)
7 |
HALF PULLEY RECEPTRICE MOBILE DE VARIATOR OEM PIAGGIO 50 COMMON A LA RANGE-827893 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/3/7/img/66237.jpg)
8 |
289950-BUSH More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/3/1/img/66231.jpg)
9 |
GASKET CLUTCH OEM PIAGGIO 50-125 COMMON A LA RANGE-289840 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/3/2/img/66632.jpg)
10 |
CUP LOGEMENT SPRING COTE PULLEY CLUTCH OEM PIAGGIO 50 COMMON A LA RANGE-483443 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/4/2/img/66542.jpg)
11 |
SPRING CORRECTEUR DE COUPLE OEM PIAGGIO 50 TYPHOON, NRG, ZIP, LIBERTY, VESPA LX, VESPA-S/APRILIA 50 SR/GILERA 50 STALKER, RUNNER, DNA/APRILIA 50 SR MOTARD-478028 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/6/4/img/66764.jpg)
12 |
CUP LOGEMENT SPRING COTE CLUTCH OEM PIAGGIO 50 COMMON A LA RANGE-487935 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/6/8/2/img/140682.jpg)
13 |
CLUTCH OEM PIAGGIO 50 LIBERTY, ZIP, PRIMAVERA, SPRINT 4T EURO4, EURO5 2018 >/APRILIA 50 SXR 2021 >-CM270503 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/3/9/img/66239.jpg)
14 |
NUT CLUTCH OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-289955 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/2/3/4/img/146234.jpg)
15 |
TAMBOUR CLUTCH OEM PIAGGIO 50 LIBERTY, ZIP, PRIMAVERA, SPRINT 4T EURO4, EURO5 2018 >/APRILIA 50 SXR 2021 >-1A004011 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/5/img/66225.jpg)
16 |
NUT DE VARIATOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-289519 More informationQuantity required : 1 |
