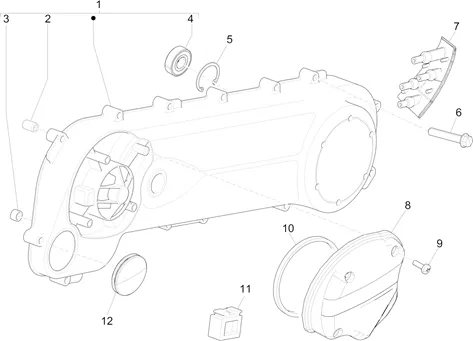

Vehicle Exploded View - VESPA VESPA SPRINT 50 2T 2014-2015 VESPA

Moteur : 01.15 COUVERCLE CARTER - REFOIDISSEMENT CARTER
Couvercle carter - Refoidissement carter
Search
COVER DE TRANSMISSION OEM PIAGGIO 50 2T TYPHOON 2006 > 2010, NRG 2006 >, VESPA PRIMAVERA 2013 >, SPRINT 2014 >/GILERA 50 RUNNER 2000 >/APRILIA 50 SR H2O 2004 >, MOJITO 2004 >-8284535

1
P2R reference P2R reference 68756
Maker reference Maker reference 8284535

COVER DE TRANSMISSION OEM PIAGGIO 50 2T TYPHOON 2006 > 2010, NRG 2006 >, VESPA PRIMAVERA 2013 >, SPRINT 2014 >/GILERA 50 RUNNER 2000 >/APRILIA 50 SR H2O 2004 >, MOJITO 2004 >-8284535

More information

Quantity required : 1

BUSH SHAFT OF KICK OEM PIAGGIO 50 FLY 2T, LIBERTY 2T, NRG, TYPHOON, VESPA LX 2T/GILERA 50 STALKER, RUNNER-286209

2
P2R reference P2R reference 66167
Maker reference Maker reference 286209

BUSH SHAFT OF KICK OEM PIAGGIO 50 FLY 2T, LIBERTY 2T, NRG, TYPHOON, VESPA LX 2T/GILERA 50 STALKER, RUNNER-286209

More information

Quantity required : 1

BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860

3
P2R reference P2R reference 66417
Maker reference Maker reference 431860

BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860

More information

Quantity required : 1

BEARING (28X8X9) CASING TRANSMISSION OEM PIAGGIO 50 TYPHOON, NRG, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX-82521R

4
P2R reference P2R reference 68524
Maker reference Maker reference 82521R

BEARING (28X8X9) CASING TRANSMISSION OEM PIAGGIO 50 TYPHOON, NRG, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX-82521R

More information

Quantity required : 1

CLIPS/CIRCLIPS (14. 6) OEM PIAGGIO COMMON A TOUTE LA RANGE-006416

5
P2R reference P2R reference 63814
Maker reference Maker reference 0064165

CLIPS/CIRCLIPS (14. 6) OEM PIAGGIO COMMON A TOUTE LA RANGE-006416

More information

Quantity required : 1

SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838

6
P2R reference P2R reference 66367
Maker reference Maker reference 414838

SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838

More information

Quantity required : 10

833700-CAP

7
P2R reference P2R reference 69081
Maker reference Maker reference 833700

833700-CAP

More information

Quantity required : 1

COVER PROTECTOR CASING OEM PIAGGIO 50 2T TYPHOON, NRG, PRIMAVERA 2016 <-830821

8
P2R reference P2R reference 68938
Maker reference Maker reference 830821

COVER PROTECTOR CASING OEM PIAGGIO 50 2T TYPHOON, NRG, PRIMAVERA 2016 <-830821

More information

Quantity required : 1

SCREW CRUCIFORME (5X15) OEM PIAGGIO COMMON A LA RANGE-435295

9
P2R reference P2R reference 66471
Maker reference Maker reference 435295

SCREW CRUCIFORME (5X15) OEM PIAGGIO COMMON A LA RANGE-435295

More information

Quantity required : 4

GASKET COVER DE VARIATOR OEM 50 2T COMMON A LA RANGE 2003 > 2017-482432

10
P2R reference P2R reference 66618
Maker reference Maker reference 482432

GASKET COVER DE VARIATOR OEM 50 2T COMMON A LA RANGE 2003 > 2017-482432

More information

Quantity required : 1

BUFFER STAND OEM PIAGGIO COMMON A LA RANGE-463872

11
P2R reference P2R reference 66537
Maker reference Maker reference 463872

BUFFER STAND OEM PIAGGIO COMMON A LA RANGE-463872

More information

Quantity required : 1

CAP/OBTURATEUR COVER TRANSMISSION OU LEG SHIELD INNER ZIP OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 1998 > 2004-483859

12
P2R reference P2R reference 66646
Maker reference Maker reference 483859

CAP/OBTURATEUR COVER TRANSMISSION OU LEG SHIELD INNER ZIP OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 1998 > 2004-483859

More information

Quantity required : 1
