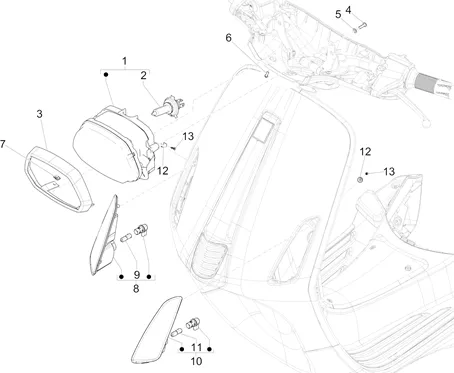

Vehicle Exploded View - VESPA VESPA SPRINT 50 2T 2014-2015 VESPA

Installation électrique : 06.03 ECLAIRAGES AVANT - CLIGNOTANTS
Eclairages avant - Clignotants
Search
LAMP UNIT/HEADLAMP/HEADLAMP (VERSION HALOGÈNE) OEM PIAGGIO 50-125 VESPA SPRINT 2014 >-1D002234

1
P2R reference P2R reference 149322
Maker reference Maker reference 1D002234

LAMP UNIT/HEADLAMP/HEADLAMP (VERSION HALOGÈNE) OEM PIAGGIO 50-125 VESPA SPRINT 2014 >-1D002234

More information

Quantity required : 1

AMPOULE/LAMPE 12V 35/35W HS1 OEM PIAGGIO COMMON A LA RANGE-231215

2
P2R reference P2R reference 65962
Maker reference Maker reference 231215

AMPOULE/LAMPE 12V 35/35W HS1 OEM PIAGGIO COMMON A LA RANGE-231215

More information

Quantity required : 1

ENJOLIVEUR HEADLAMP CHROME (VERSION HALOGÈNE) OEM PIAGGIO 50-125 VESPA SPRINT 2014 >-1B001270

3
P2R reference P2R reference 75848
Maker reference Maker reference 1B001270

ENJOLIVEUR HEADLAMP CHROME (VERSION HALOGÈNE) OEM PIAGGIO 50-125 VESPA SPRINT 2014 >-1B001270

More information

Quantity required : 1

SCREW TORX (5X16) OEM PIAGGIO COMMON A LA RANGE-B0167965

4
P2R reference P2R reference 139445
Maker reference Maker reference B0167965

SCREW TORX (5X16) OEM PIAGGIO COMMON A LA RANGE-B0167965

More information

Quantity required : 4

WASHER ELASTIC (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-006965

5
P2R reference P2R reference 63837
Maker reference Maker reference 0069655

WASHER ELASTIC (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-006965

More information

Quantity required : 4

SCREW BTR HEAD BOMBEE (4X10) OEM PIAGGIO COMMON A LA RANGE-621914

6
P2R reference P2R reference 67663
Maker reference Maker reference 621914

SCREW BTR HEAD BOMBEE (4X10) OEM PIAGGIO COMMON A LA RANGE-621914

More information

Quantity required : 2

NUT SHEET METAL (3, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017418

7
P2R reference P2R reference 95193
Maker reference Maker reference CM017418

NUT SHEET METAL (3, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017418

More information

Quantity required : 2

FRONT RIGHT INDICATOR OEM PIAGGIO 50 VESPA PRIMAVERA 2013 >, SPRINT 2014 >-6800855

8
P2R reference P2R reference 92142
Maker reference Maker reference 6800855

FRONT RIGHT INDICATOR OEM PIAGGIO 50 VESPA PRIMAVERA 2013 >, SPRINT 2014 >-6800855

More information

Quantity required : 1

AMPOULE/LAMPE 12V 6W BAZ9S/H6W ORANGE OEM PIAGGIO COMMON A LA RANGE-1D000261

9
P2R reference P2R reference 76176
Maker reference Maker reference 1D000261

AMPOULE/LAMPE 12V 6W BAZ9S/H6W ORANGE OEM PIAGGIO COMMON A LA RANGE-1D000261

More information

Quantity required : 1

FRONT LEFT INDICATOR OEM PIAGGIO 50 VESPA PRIMAVERA 2013 >, SPRINT 2014 >-6800845

10
P2R reference P2R reference 92141
Maker reference Maker reference 6800845

FRONT LEFT INDICATOR OEM PIAGGIO 50 VESPA PRIMAVERA 2013 >, SPRINT 2014 >-6800845

More information

Quantity required : 1

AMPOULE/LAMPE 12V 6W BAZ9S/H6W ORANGE OEM PIAGGIO COMMON A LA RANGE-1D000261

11
P2R reference P2R reference 76176
Maker reference Maker reference 1D000261

AMPOULE/LAMPE 12V 6W BAZ9S/H6W ORANGE OEM PIAGGIO COMMON A LA RANGE-1D000261

More information

Quantity required : 1

CAPSULE OF FITTING KIT FAIRING OEM PIAGGIO COMMON A LA RANGE-192598

12
P2R reference P2R reference 75172
Maker reference Maker reference 192598

CAPSULE OF FITTING KIT FAIRING OEM PIAGGIO COMMON A LA RANGE-192598

More information

Quantity required : 2

SCREW AUTOTARAUDEUSE (2, 9X9, 5) CRUCIFORME OEM PIAGGIO COMMON A TOUTE LA RANGE-015727

13
P2R reference P2R reference 65387
Maker reference Maker reference 0157275

SCREW AUTOTARAUDEUSE (2, 9X9, 5) CRUCIFORME OEM PIAGGIO COMMON A TOUTE LA RANGE-015727

More information

Quantity required : 2
