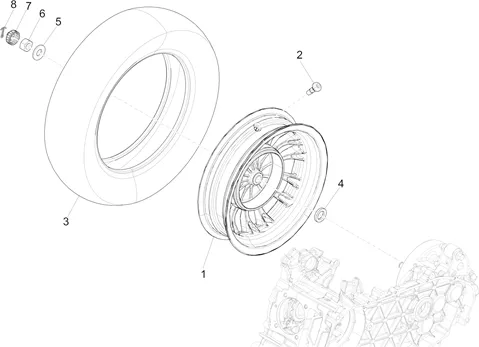

Suspensions - roues : 04.12 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/784/Vespa_Sprint_125_4T_3V_IGET_ABS_E4_2016-2018_EMEA_04.12.png)
1 |
1C001636-WHEEL AR. (3. 00X12 ") More informationQuantity required : 1 |
||||||
|
1 |
1C001122-WHEEL ARR. (3 X 12 ") More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/4/7/8/img/146478.jpg)
1 |
WHEEL ARR. 3. 00 " X12 " OEM VESPA 50/125 SPRINT E5 2016 > SPORT VERSION-1C00499100090 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/0/img/67350.jpg)
2 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-597679 More informationQuantity required : 1 |
||||||
|
3 |
1C000813 - PNEU 120/70-12" More informationQuantity required : 1 |
||||||
|
3 |
1C002663-TYRE 120/70-12 " More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/7/4/img/67474.jpg)
4 |
SPACER OEM PIAGGIO COMMON A LA RANGE-601205 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/2/img/66122.jpg)
5 |
WASHER (16X34, 8X2, 2) REAR WHEEL OEM PIAGGIO COMMON A LA RANGE-273099 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/3/5/img/67035.jpg)
6 |
NUT (M16) OEM PIAGGIO COMMON A TOUTE LA RANGE-563728 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/9/6/5/0/img/189650.jpg)
7 |
CAGE MOUNTING NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-1C004746 More informationQuantity required : 1 |
||||||
|
7 |
CAGE MOUNTING NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-1C004746 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/5/img/65355.jpg)
8 |
GOUPILLE SECURITE NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-012789 More informationQuantity required : 1 |
