Vehicle Exploded View - VESPA VESPA SPRINT 125 4T 3V IGET ABS E4 2016-2018 EMEA VESPA

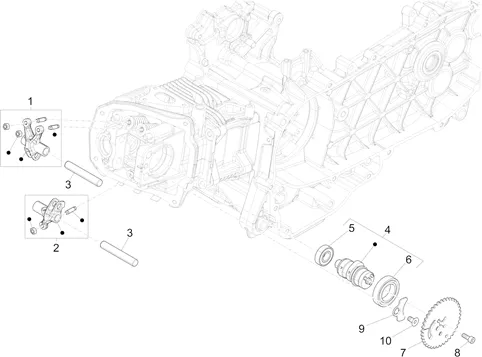

Moteur : 01.11 GROUPE SUPPORT BALANCIERS
Groupe support balanciers
Search
CULBUTEUR D'ADMISSION OEM PIAGGIO 125 FLY 3V, LIBERTY 3V, VESPA LX 3V, PRIMAVERA 3V, VESPA-S 3V-1A019798R

1
P2R reference P2R reference 204623
Maker reference Maker reference 1A019798R

CULBUTEUR D'ADMISSION OEM PIAGGIO 125 FLY 3V, LIBERTY 3V, VESPA LX 3V, PRIMAVERA 3V, VESPA-S 3V-1A019798R

More information

Quantity required : 1

CULBUTEUR D'ADMISSION OEM PIAGGIO 125 FLY 3V, LIBERTY 3V, VESPA LX 3V, PRIMAVERA 3V, VESPA-S 3V-1A019798R

1
P2R reference P2R reference 204623
Maker reference Maker reference 1A003237R

CULBUTEUR D'ADMISSION OEM PIAGGIO 125 FLY 3V, LIBERTY 3V, VESPA LX 3V, PRIMAVERA 3V, VESPA-S 3V-1A019798R

More information

Quantity required : 1

EXHAUST ROCKER "PIAGGIO GENUINE PART" 125 FLY 3V, LIBERTY 3V, VESPA LX 3V, PRIMAVERA 3V, VESPA-S 3V -1A003238R-

2
P2R reference P2R reference 127225
Maker reference Maker reference 1A003238R

EXHAUST ROCKER "PIAGGIO GENUINE PART" 125 FLY 3V, LIBERTY 3V, VESPA LX 3V, PRIMAVERA 3V, VESPA-S 3V -1A003238R-

More information

Quantity required : 1

B014047 - AXE DU CULBUTEURS

3
P2R reference P2R reference 94544
Maker reference Maker reference B014047

B014047-SPINDLE DU CULBUTEURS

More information

Quantity required : 2

CAMSHAFT OEM PIAGGIO 125 FLY, LIBERTY, PRIMAVERA, SPRINT 2013 >-1A0035075

4
P2R reference P2R reference 127229
Maker reference Maker reference 1A0035075

CAMSHAFT OEM PIAGGIO 125 FLY, LIBERTY, PRIMAVERA, SPRINT 2013 >-1A0035075

More information

Quantity required : 1

83029R - ROULEMENT 12.28.8

5
P2R reference P2R reference 92855
Maker reference Maker reference 83029R

83029R-BEARING 12. 28. 8

More information

Quantity required : 1

83030R - ROULEMENT 25.42.9

6
P2R reference P2R reference 92856
Maker reference Maker reference 83030R

83030R-BEARING 25. 42. 9

More information

Quantity required : 1

B018675 - COURONNE DENTEE

7
P2R reference P2R reference 94836
Maker reference Maker reference B018675

B018675-COURONNE DENTEE

More information

Quantity required : 1

B016474 - BOULON

8
P2R reference P2R reference 72708
Maker reference Maker reference B016474

B016474-BOLT

More information

Quantity required : 2

B013836 - PLAQUE ARBRE A CAMES

9
P2R reference P2R reference 94534
Maker reference Maker reference B013836

B013836-PLATE CAMSHAFT

More information

Quantity required : 1

SCREW TORX HEAD FRAISEE (6X12) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA GAMME1A003919

10
P2R reference P2R reference 127170
Maker reference Maker reference 1A003919

SCREW TORX HEAD FRAISEE (6X12) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA GAMME1A003919

More information

Quantity required : 1
