Vehicle Exploded View - VESPA VESPA SPRINT 125 4T 3V ie ABS E5 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

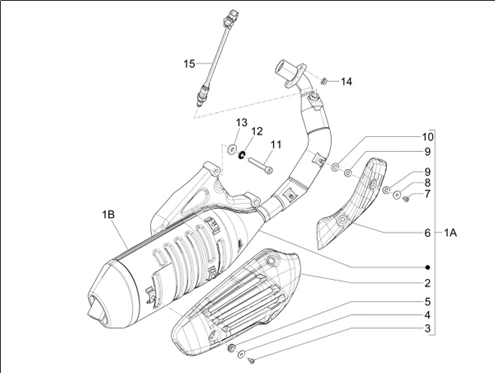

Moteur : 01.42 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1251/Vespa_Sprint_125_4T_3V_ie_ABS_E5_2021_(EMEA)_01.42.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/7/3/4/8/img/177348.jpg)
1A |
SILENCER EXHAUST OEM PIAGGIO 125 VESPA PRIMAVERA 2020 >-1A0199905 More informationQuantity required : 1 |
||||||
1A |
SILENCER EXHAUST OEM PIAGGIO 125 SPRINT RACING SIXTIES 2021 >-1A0203275 More informationQuantity required : 1 |
||||||
|
1B |
1A022177-SILENCER D'ECHAPPEMENT COMPLETE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/3/6/9/4/img/153694.jpg)
2 |
PROTECTOR/SHEET METAL DE SILENCER EXHAUST MATTE BLACK OEM PIAGGIO 50-125 VESPA SPRINT, PRIMAVERA 2016 < 2020-1A011836 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/6/3/1/img/139631.jpg)
2 |
PROTECTOR/SHEET METAL DE SILENCER EXHAUST CHROME OEM PIAGGIO 50-125 VESPA SPRINT, PRIMAVERA 2016 < 2020-1A006767 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/7/3/img/68173.jpg)
3 |
SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-651014 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
3 |
SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/6/img/68676.jpg)
4 |
WASHER PLATE (5X16) SHEET METAL EXHAUST OEM PIAGGIO COMMON A TOUTE LA RANGE-827526 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/0/1/1/img/93011.jpg)
4 |
WASHER PLATE (D5) OEM PIAGGIO COMMON A LA RANGE-844927 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/0/4/img/69204.jpg)
5 |
RUBBER GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-841782 More informationQuantity required : 3 |
||||||
|
6 |
1A018034-THERMAL PROTECTOR More informationQuantity required : 1 |
||||||
|
7 |
SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-651014 More informationQuantity required : 1 |
||||||
|
8 |
WASHER PLATE (5X16) SHEET METAL EXHAUST OEM PIAGGIO COMMON A TOUTE LA RANGE-827526 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/3/7/img/70637.jpg)
9 |
WASHER INTERCALAIRE OEM PIAGGIO COMMON A LA RANGE-876879 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/7/9/img/66179.jpg)
10 |
WASHER DE BUTEE SPROCKET OIL PUMP OEM PIAGGIO COMMON A TOUTE LA RANGE 50 CC 2T 287073 More informationQuantity required : 2 |
||||||
|
11 |
872997-SCREW M8X55 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/8/8/img/68488.jpg)
12 |
WASHER PLATE (8. 3X18X1. 5) OEM PIAGGIO COMMON A LA RANGE-709012 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
13 |
WASHER (8, 2X16X2, 2) OEM PIAGGIO COMMON A TOUTE LA RANGE-834187 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/9/img/66509.jpg)
14 |
NUT EXHAUST ON CYLINDER HEAD MAXI SCOOTER 125-250 X8, X-EVO, VESPA GTS, MP3, 125 LIBERTY, VESPA LX, PRIMAVERA/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC-436947 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/6/1/5/img/171615.jpg)
15 |
SONDE LAMBDA OEM PIAGGIO APRILIA, MOTO GUZZI, PIAGGIO, VESPA EURO5-1A014335 More informationQuantity required : 1 |
