Vehicle Exploded View - VESPA VESPA SPRINT 125 4T 3V ie ABS E5 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

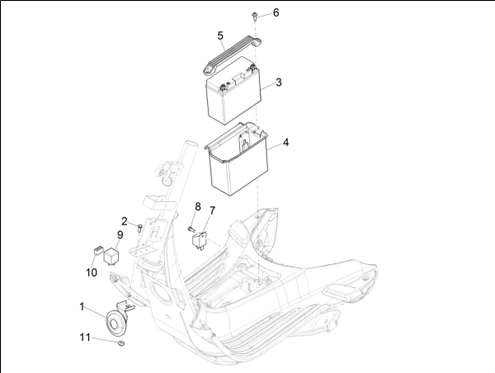

Circuit électrique : 06.05 RELAIS - BATTERIE - AVERTISSEUR SONORE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1251/Vespa_Sprint_125_4T_3V_ie_ABS_E5_2021_(EMEA)_06.05.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/7/2/img/67172.jpg)
1 |
AVERTISSEUR OEM PIAGGIO 125 MP3, VESPA LX, PRIMAVERA, SPRINT/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX-58034R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
2 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/0/5/img/67305.jpg)
3 |
BATTERY 12V 6 AH YTX7L-BS OEM PIAGGIO COMMON A LA RANGE-584662 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/6/9/4/8/img/136948.jpg)
3 |
BATTERY 12V 6AH PTX7L-BS OEM PIAGGIO COMMON A LA RANGE (LG113XL70XH132)-1R000317 More informationQuantity required : 1 |
||||||
4 |
1B004967-BRACKET DE BATTERY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/5/6/7/img/91567.jpg)
5 |
CALIPER DE RETENUE DE BATTERY OEM PIAGGIO 50-125 PRIMAVERA, SPRINT 2013 >-674076 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/7/img/73367.jpg)
6 |
SCREW TORX (6X22) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-CM179302 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/3/img/67203.jpg)
7 |
RELAIS STARTER MOTOR MAXI SCOOTER OEM PIAGGIO 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250-300 ATLANTIC (12V-80A)-58115R More informationQuantity required : 1 |
||||||
|
8 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/6/img/139406.jpg)
9 |
RELAIS 12V 30A WITH RESISTANCE OEM PIAGGIO 125-350-500 MP3, X10, 125-250-300 VESPA GTS, PORTER/APRILIA 1000 RSV-2, TUONO V2, FALCO, CAPONORD-1D001636 More informationQuantity required : 1 |
||||||
|
10 |
642317-SOUTIEN DES INDICATEURS DE STEERING More informationQuantity required : 1 |
||||||
|
11 |
709116-NUT More informationQuantity required : 1 |
