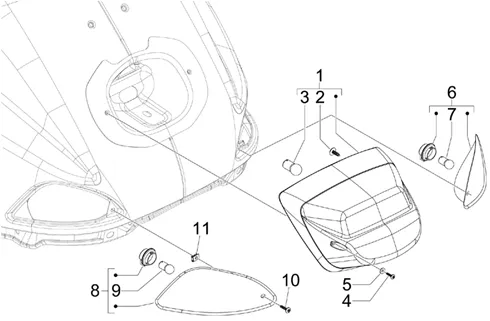

Installation électrique : 06.04 ECLAIRAGES ARRIÈRE - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/227/Vespa_S_50_2T_College_2007-2012_06.04.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/7/9/3/img/81793.jpg)
1 |
TAILLIGHT- "PIAGGIO GENUINE PART" 50-125 VESPA-S 2007> -58264R More informationQuantity required : 1 |
||||||
2 |
640813-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/7/img/65727.jpg)
3 |
AMPOULE/LAMPE 12V 21/5W BAY15D/P21/5 OEM PIAGGIO COMMON A LA RANGE-129953 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
4 |
SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/1/img/65361.jpg)
5 |
WASHER PLATE (4. 5X10X1) OEM PIAGGIO COMMON A LA RANGE-013769 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/6/3/4/img/81634.jpg)
6 |
REAR RIGHT INDICATOR OEM PIAGGIO 50-125 VESPA LX-58177R5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/6/3/1/img/81631.jpg)
6 |
REAR LEFT INDICATOR OEM PIAGGIO 50-125 VESPA LX-58176R5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
7 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 1 |
||||||
|
8 |
REAR LEFT INDICATOR OEM PIAGGIO 50-125 VESPA LX-58176R5 More informationQuantity required : 1 |
||||||
|
8 |
REAR RIGHT INDICATOR OEM PIAGGIO 50-125 VESPA LX-58177R5 More informationQuantity required : 1 |
||||||
|
9 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/0/img/63850.jpg)
10 |
SCREW PARKER (3. 5X13) CRUCIFORME DE FAIRING OEM PIAGGIO COMMON A LA RANGE-008372 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/3/img/72923.jpg)
11 |
NUT SHEET METAL (3, 5 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017405 More informationQuantity required : 2 |
