Vehicle Exploded View - VESPA VESPA S 50 2T College 2007-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

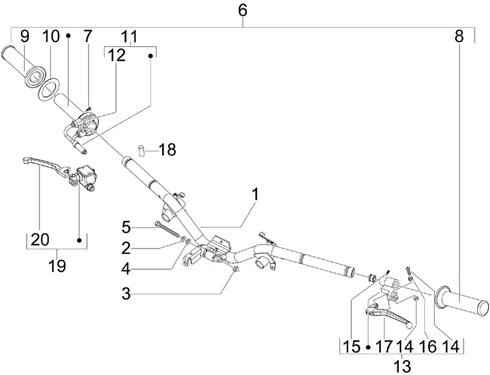

Guidon/direction : 03.06 GUIDON - MAÎTRE CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/227/Vespa_S_50_2T_College_2007-2012_03.06.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/2/6/4/img/88264.jpg)
1 |
HANDLEBAR "PIAGGIO GENUINE PART" 50-125 VESPA-S -6542675 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/0/img/65350.jpg)
2 |
WASHER CRANTEE (10. 3X17X2) OEM PIAGGIO COMMON A LA RANGE-012543 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/8/img/65378.jpg)
3 |
NUT (M10) OEM PIAGGIO COMMON A LA RANGE-015330 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/3/6/img/110336.jpg)
4 |
WASHER PLATE (10X18X2. 5) OEM PIAGGIO COMMON A LA RANGE-267917 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/2/9/4/img/68294.jpg)
5 |
SCREW BTR (10X65) OEM PIAGGIO COMMON A LA RANGE-655554 More informationQuantity required : 1 |
||||||
6 |
CM060967 - MANCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/8/img/65718.jpg)
7 |
SCREW BTR (6X17) WITH BUSH OEM PIAGGIO COMMON A LA RANGE-123394 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/3/8/img/66138.jpg)
8 |
REVETEMENT/GRIP LEFT OEM PIAGGIO 50-125 FLY, VESPA LX, VESPA-S, TYPHOON, 50 ZIP, NRG/APRILIA 50 SR MOTARD, SPORT-CITY-274489 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/7/7/9/img/95779.jpg)
8 |
GRIP/REVETTEMENT LEFT OEM PIAGGIO 50-125 VESPA LX, VESPA-S-CM083803 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/3/9/img/66139.jpg)
9 |
REVETEMENT/GRIP RIGHT OEM PIAGGIO 50-125 FLY, VESPA LX, VESPA-S, TYPHOON, 50 ZIP, NRG/APRILIA 50 SR MOTARD, SPORT-CITY-274491 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/7/8/0/img/95780.jpg)
9 |
REVETEMENT DE GRIP RIGHT OEM PIAGGIO 50-125 VESPA LX, VESPA-S-CM083804 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/2/2/img/67022.jpg)
10 |
BUSH GRIP THROTTLE 38, 3X27X1, 2 COMMON A LA RANGE PIAGGIO-6562923 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/9/7/4/img/81974.jpg)
11 |
CABLE/CONTROL/TRANSMISSION DE THROTTLE (DE LA GRIP AU REPARTITEUR) OEM PIAGGIO 50 VESPA LX, VESPA-S-583870 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/7/4/img/65474.jpg)
12 |
NUT M6 OEM PIAGGIO COMMON A LA RANGE-020206 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/7/0/img/72970.jpg)
13 |
GRIP SCOOT OEM PIAGGIO 50-125 FLY 2005 >, 50-125 LIBERTY 2005 > 2008, 50-125 VESPA LX 2005 > 2008, 50 NRG 2005 >, 50 TYPHOON 2006 > (LEFT PAS A RIGHT)-CM063804 More informationQuantity required : 1 |
||||||
|
14 |
|
||||||
|
15 |
SCREW BTR (6X17) WITH BUSH OEM PIAGGIO COMMON A LA RANGE-123394 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/7/img/66067.jpg)
16 |
SPRING DE BRAKE LEVER LEFT OEM PIAGGIO COMMON A LA RANGE WITH BRAKE TAMBOUR-267948 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/7/5/img/67075.jpg)
17 |
BRAKE LEVER SCOOT OEM PIAGGIO 50-125 FLY, LIBERTY, VESPA LX, PRIMAVERA, 50 NRG POWER LEFT (HENG-TONG)-564683 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/0/img/65720.jpg)
18 |
CAP/CAPSULE DE MIRROR OEM PIAGGIO COMMON A LA RANGE-125998 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/9/1/img/72991.jpg)
19 |
BRAKE MASTER CYLINDER FRONT OEM PIAGGIO 50-125 VESPA LX 2006, VESPA-S 2007 >/APRILIA 50 SCARABEO 2010 >-CM074904 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/9/9/img/67999.jpg)
20 |
BRAKE LEVER RIGHT GRIMECA OEM PIAGGIO 50-125 FLY, VESPA LX, VESPA-S, LIBERTY/GILERA 50-125 RUNNER-646803 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/1/1/img/66911.jpg)
20 |
BRAKE LEVER SCOOT OEM PIAGGIO 50-125 FLY, VESPA LX, MEDLEY, PRIMAVERA, 125-250-300 VESPA GTS, 50 NRG POWER, LIBERTY/GILERA 125 RUNNER LEFT/RIGHT-497042 More informationQuantity required : 1 |
||||||
|
20 |
LEVIER FREIN |
