Vehicle Exploded View - VESPA VESPA LXV 125 4T 2V NOABS E3 2006-2009 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

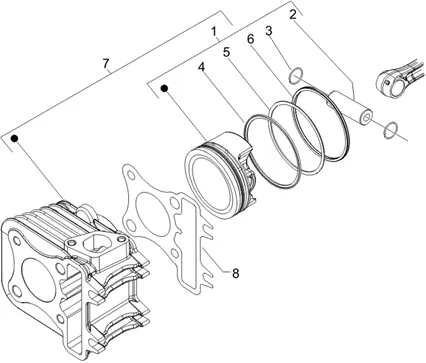

Moteur : 01.07 GROUPE CYLINDRE-PISTON-AXE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/852/Vespa_LXV_125_4T_2V_NOABS_E3_2006-2009_(EMEA)_01.07.png)
1 |
8319740002-ENS. PISTON SPINDLE More informationQuantity required : 1 |
||||||
|
1 |
8319740003-ENS. PISTON SPINDLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/8/3/img/68983.jpg)
1 |
PISTON COMPLETE OEM PIAGGIO 125 FLY, LIBERTY, X8 STREET, VESPA LX/APRILIA 125 MOJITO, SPORT-CITY-8319740004 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/4/8/img/68648.jpg)
1 |
PISTON (B) CYLINDER ALU OEM PIAGGIO 125 LIBERTY, FLY, LX 2012 <-8271120002 More informationQuantity required : 1 |
||||||
|
1 |
8271120003-GR PISTON More informationQuantity required : 1 |
||||||
|
1 |
8319740001-ENS PIST.-SPINDLE More informationQuantity required : 1 |
||||||
|
1 |
8271120004-GR PISTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/4/7/img/68647.jpg)
1 |
PISTON "PIAGGIO GENUINE PART" 125 FLY, LIBERTY, VESPA LX, VESPA-S -8271120001 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/1/5/img/66615.jpg)
2 |
SPINDLE PISTON OEM PIAGGIO 125 MP3 2006 > 2013, X10 2012 > 2015/VESPA GTS 2007 > 2016, VESPA LX 2006 > 2011-482335 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/2/2/img/70922.jpg)
3 |
CIRCLIPS DE PISTON OEM PIAGGIO ENGINE LEADER 125-250-963486 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/9/2/img/66692.jpg)
4 |
PISTON RING DE LAMP OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125 ATLANTIC 2003-485779 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/9/7/img/66697.jpg)
5 |
PISTON RING INTERMEDIAIRE OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125 ATLANTIC-485914 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/1/3/img/66713.jpg)
6 |
PISTON RING RACLEUR D'HUILE OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125 ATLANTIC-486362 More informationQuantity required : 1 |
||||||
|
7 |
CYLINDER PISTON OEM PIAGGIO 125 FLY, LIBERTY, VESPA LX, X8 STREET/APRILIA 125 MOJITO, SR, SPORT-CITY 2012 <-831975 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/5/img/70575.jpg)
8 |
CYLINDER BASE GASKET DE CYLINDER (0, 6MM) MAXI SCOOTER OEM PIAGGIO COMMON A LA RANGE 125-250-300-875113 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/6/img/70576.jpg)
8 |
CYLINDER BASE GASKET DE CYLINDER (0, 8MM) MAXI SCOOTER OEM PIAGGIO COMMON A LA RANGE 125-250-300-875114 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/4/img/70574.jpg)
8 |
CYLINDER BASE GASKET DE CYLINDER (0, 4MM) MAXI SCOOTER OEM PIAGGIO COMMON A LA RANGE 125-250-300-875112 More informationQuantity required : 1 |
