Vehicle Exploded View - VESPA VESPA LXV 125 4T 2V NOABS E3 2006-2009 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

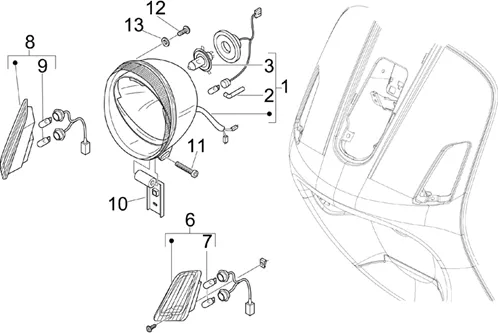

Circuit électrique : 06.03 ECLAIRAGES AVANT - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/852/Vespa_LXV_125_4T_2V_NOABS_E3_2006-2009_(EMEA)_06.03.png)
1 |
63996500M4 - PROJECTEUR More informationQuantity required : 1 |
||||||
|
1 |
63982800EP-HEADLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/8/5/4/img/85854.jpg)
1 |
HEADLAMP "PIAGGIO GENUINE PART" 50-125 VESPA LXV 2006>2009 GREEN 308/A -63996500VG More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/2/9/5/img/109295.jpg)
1 |
LAMP UNIT/HEADLAMP/HEADLAMP OEM PIAGGIO 125 VESPA LXV VERT 305/A-63982800VG More informationQuantity required : 1 |
||||||
|
1 |
63982800M4 - PROJECTEUR More informationQuantity required : 1 |
||||||
|
2 |
272723 - RAGGIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
3 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/6/2/7/img/81627.jpg)
6 |
FRONT RIGHT INDICATOR OEM PIAGGIO 50-125 VESPA LX-58175R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/6/2/4/img/81624.jpg)
6 |
FRONT LEFT INDICATOR OEM PIAGGIO 50-125 VESPA LX-58174R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
7 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 1 |
||||||
|
8 |
FRONT RIGHT INDICATOR OEM PIAGGIO 50-125 VESPA LX-58175R More informationQuantity required : 1 |
||||||
|
9 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 1 |
||||||
|
10 |
653051-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.jpg)
11 |
SCREW TORX (6X16) OEM PIAGGIO COMMON A LA RANGE-CM179301 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
11 |
SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/4/8/2/img/85482.jpg)
12 |
SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-624995 More informationQuantity required : 2 |
||||||
|
13 |
624985-WASHER More informationQuantity required : 2 |
