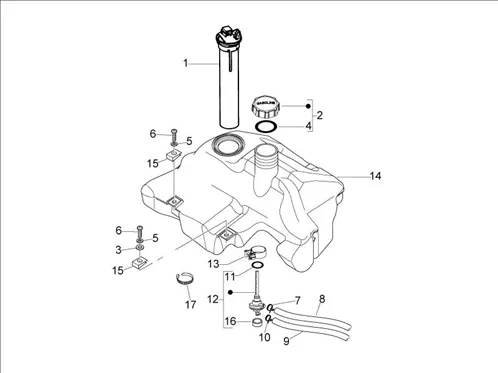

Châssis - parties plastiques - carrosseries : 02.47 RÉSERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/721/Vespa_LX_50_4T_2006-2009_02.47.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/3/4/2/img/95342.jpg)
1 |
JAUGE A FUEL OEM PIAGGIO 50-125 VESPA LX, VESPA-S, VESPA LXV 2005 > 2013-CM025702 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/4/img/66044.jpg)
2 |
CAP FUEL OEM PIAGGIO 50-125-250-300 X7, X8, X-EVO, X9, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, ZIP, TYPHOON, VESPA PRIMAVERA/APRILIA 50-125 SR-MOTARD, SPORT-CITY-259832 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
3 |
WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
5 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
6 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
6 |
SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/1/img/72891.jpg)
7 |
HOSE CLAMP HOSE (8X11) OEM PIAGGIO COMMON A LA RANGE-CM002904 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/1/img/72901.jpg)
8 |
HOSE/FUEL HOSE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC ET MAXI SCOOTER 125 CC-CM006116 More informationQuantity required : 1 |
||||||
9 |
CM0012096-FUEL HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/8/img/72888.jpg)
10 |
HOSE CLAMP HOSE (5X8) OEM PIAGGIO COMMON A LA RANGE-CM002901 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/2/5/img/65825.jpg)
11 |
GASKET OF ROBINET FUEL OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-196868 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/7/3/img/68473.jpg)
12 |
ROBINET FUEL SCOOT OEM PIAGGIO 50-125 FLY 2005 >, LIBERTY 1998 >, 50 TYPHOON 2010 >, ZIP 2000 >, 125 VESPA LX 2005 >, VESPA GTS 2007 >/APRILIA 50-125 SPORT-CITY 2008 >-674594 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/1/6/img/70716.jpg)
13 |
CLAMP SERRAGE ROBINET D'ESSENCE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-879888 More informationQuantity required : 1 |
||||||
|
14 |
FUEL TANK OEM PIAGGIO 50-125 VESPA LX, VESPA-S, VESPA LXV-622834 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
15 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/7/8/img/65678.jpg)
16 |
CAP OBTURATEUR (D6) OEM PIAGGIO COMMON A LA RANGE-090958 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
17 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/6/img/66026.jpg)
18 |
GASKET OF CAP FUEL OEM PIAGGIO COMMON A LA RANGE-258160 More informationQuantity required : 1 |
