Vehicle Exploded View - VESPA VESPA LX 50 4T 2006-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

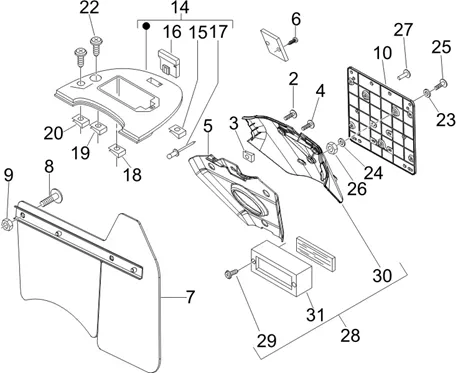

Châssis - parties plastiques - carrosseries : 02.37 COUVERCLE ARRIÈRE - PARE-BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/721/Vespa_LX_50_4T_2006-2009_02.37.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
2 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
3 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
4 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/8/0/1/img/84801.jpg)
5 |
COVER/COVER SEAT CHROME OEM PIAGGIO 125-300 GTS 2009 > 2018-623336 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/7/4/img/66074.jpg)
6 |
SCREW AUTOTARAUDEUSE (4X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-268596 More informationQuantity required : 1 |
|||||||||
7 |
623420-PROTECTOR MUD More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
8 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
9 |
WASHER PLATE (4X12) OEM PIAGGIO COMMON A LA RANGE-013763 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/6/8/img/67968.jpg)
10 |
BRACKET DE PLATE IMMATRICCULATION OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-642235 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/1/2/img/67812.jpg)
10 |
DOOR PLATE IMMATRICULATION OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-638833 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/1/7/3/img/89173.jpg)
14 |
COVER/COVER BATTERY WITH CROCHET FOR LA SEAT OEM PIAGGIO 50-125 VESPA LX 4T, VESPA S 4T-656303 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
15 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/2/img/66242.jpg)
16 |
BRACKET DOOR FUSIBLE OEM PIAGGIO COMMON A LA RANGE-290405 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/0/2/img/65802.jpg)
17 |
RIVET MOUNTING ELEMENT DE CARROSSERIE OEM PIAGGIO COMMON A LA RANGE-182302 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/4/img/72924.jpg)
18 |
NUT SHEET METAL (4. 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017408 More informationQuantity required : 2 |
|||||||||
|
19 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 2 |
|||||||||
|
20 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/7/img/66107.jpg)
22 |
SCREW CRUCIFORME (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-271891 More informationQuantity required : 1 |
|||||||||
|
23 |
WASHER PLATE (4X12) OEM PIAGGIO COMMON A LA RANGE-013763 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/4/img/65414.jpg)
24 |
WASHER (4, 2X7, 6X0, 9) OEM PIAGGIO COMMON A LA RANGE-016404 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
25 |
SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/9/img/65459.jpg)
26 |
NUT (M4) OEM PIAGGIO COMMON A LA RANGE-020104 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/4/img/66264.jpg)
27 |
CAP COVER OEM PIAGGIO COMMON A LA RANGE-293717 More informationQuantity required : 3 |
|||||||||
|
28 |
BAVETTE AR |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/7/0/1/img/84701.jpg)
28 |
MUD FLAP REAR OEM PIAGGIO 50 VESPA LX 2006 > BLACK-622904400P More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/7/0/0/img/84700.jpg)
28 |
MUD FLAP REAR OEM PIAGGIO 50 VESPA LX BLUE-622904400L More informationQuantity required : 1 |
|||||||||
|
28 |
BAVETTE AR |
|||||||||
|
29 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 2 |
|||||||||
|
30 |
622905000L-MUD FLAP AR ET/RST More informationQuantity required : 1 |
|||||||||
|
30 |
BAVETTE AR ET/RST |
|||||||||
|
30 |
BAVETTE AR ET/RST |
|||||||||
|
30 |
MUD FLAP REAR OEM PIAGGIO 50 VESPA LX 2006 > BLACK-622904400P More informationQuantity required : 1 |
|||||||||
|
31 |
COUVERCLE FEU AR |
|||||||||
|
31 |
COUVERCLE FEU AR |
|||||||||
|
31 |
COUVERCLE FEU AR |
|||||||||
|
31 |
COUVERCLE FEU AR |
|||||||||
