Vehicle Exploded View - VESPA VESPA LX 50 2T 2009-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

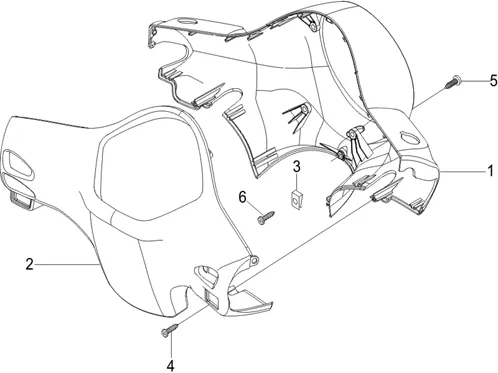

Guidon/direction : 03.01 COUVERTURES GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/767/Vespa_LX_50_2T_2009-2013_03.01.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/4/8/3/img/87483.jpg)
1 |
HANDLEBAR COVER FRONT OEM PIAGGIO 50-125 VESPA LX 2017 > UNPAINTED READY TO PAINT-1B004447 More informationQuantity required : 1 |
||||||
1 |
6529350018 - COUVRE GUIDON AV More informationQuantity required : 1 |
||||||
|
1 |
65293500AH - COUVRE GUIDON AV More informationQuantity required : 1 |
||||||
|
1 |
65293500AI - COUVRE GUIDON AV More informationQuantity required : 1 |
||||||
|
1 |
65293500BR - COUVRE GUIDON AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/4/9/3/img/87493.jpg)
1 |
FRONT HANDLEBAR COVER "PIAGGIO GENUINE PART" 50-125 VESPA LX BLUE 241/A -65293500C5- More informationQuantity required : 1 |
||||||
|
1 |
HANDLEBAR COVER FRONT OEM PIAGGIO 50-125 VESPA LX 2017 > UNPAINTED READY TO PAINT-1B004447 More informationQuantity required : 1 |
||||||
|
1 |
65293500EU - COUVRE GUIDON AV More informationQuantity required : 1 |
||||||
|
1 |
65293500H9 - COUVRE GUIDON AV More informationQuantity required : 1 |
||||||
|
1 |
65293500M4 - COUVRE GUIDON AV More informationQuantity required : 1 |
||||||
|
1 |
65293500P2 - COUVRE GUIDON AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/5/1/3/img/87513.jpg)
1 |
FRONT HANDLEBAR COVER "PIAGGIO GENUINE PART" 50-125 VESPA LX PINK 577 -65293500P3 More informationQuantity required : 1 |
||||||
|
1 |
65293500VM - COUVRE GUIDON AV More informationQuantity required : 1 |
||||||
|
1 |
65293500XN2 - COUVRE GUIDON AV More informationQuantity required : 1 |
||||||
|
2 |
HANDLEBAR COVER REAR OEM PIAGGIO VESPA 125 ET4 UNPAINTED READY TO PAINT-1B004448 More informationQuantity required : 1 |
||||||
|
2 |
6529340018 - COUVRE GUIDON AR More informationQuantity required : 1 |
||||||
|
2 |
65293400AH - COUVRE GUIDON AR More informationQuantity required : 1 |
||||||
|
2 |
65293400AI - COUVRE GUIDON AR More informationQuantity required : 1 |
||||||
|
2 |
65293400BR - COUVRE GUIDON AR More informationQuantity required : 1 |
||||||
|
2 |
65293400C5 - COUVRE GUIDON AR More informationQuantity required : 1 |
||||||
|
2 |
65293400DE - COUVRE GUIDON AR V.LX More informationQuantity required : 1 |
||||||
|
2 |
65293400EU - COUVRE GUIDON AR More informationQuantity required : 1 |
||||||
|
2 |
65293400H9 - COUVRE GUIDON AR V.LX More informationQuantity required : 1 |
||||||
|
2 |
65293400M4 - COUVRE GUIDON AR More informationQuantity required : 1 |
||||||
|
2 |
65293400P2 - COUVRE GUIDON AR More informationQuantity required : 1 |
||||||
|
2 |
REAR HANDLEBAR COVER "PIAGGIO GENUINE PART" 50-125 VESPA LX PINK 577 -65293400P3- More informationQuantity required : 1 |
||||||
|
2 |
65293400R7 - COUVRE GUIDON AR ET4 More informationQuantity required : 1 |
||||||
|
2 |
65293400VM - COUVRE GUIDON AR More informationQuantity required : 1 |
||||||
|
2 |
65293400XN2 - COUVRE GUIDON AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/5/img/72925.jpg)
3 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017409 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/6/img/63856.jpg)
4 |
SCREW PARKER (4, 2X19) CRUCIFORME DE INDICATOR OU FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-008457 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
5 |
SCREW AUTOTARAUDEUSE (3X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-258146 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
6 |
SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793 More informationQuantity required : 3 |
