Vehicle Exploded View - VESPA VESPA LX 50 2T 2009-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

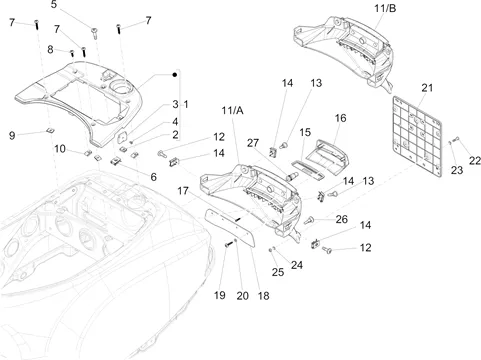

Châssis - parties plastiques - carrosseries : 02.37 COUVERCLE ARRIÈRE - PARE-BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/767/Vespa_LX_50_2T_2009-2013_02.37.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/7/4/7/img/84747.jpg)
1 |
COVER DE BATTERY OEM PIAGGIO 50 VESPA LX 2T 2005, VESPA S 2007 >-623019 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
2 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/2/img/66242.jpg)
3 |
BRACKET DOOR FUSIBLE OEM PIAGGIO COMMON A LA RANGE-290405 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/0/2/img/65802.jpg)
4 |
RIVET MOUNTING ELEMENT DE CARROSSERIE OEM PIAGGIO COMMON A LA RANGE-182302 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/7/img/66107.jpg)
5 |
SCREW CRUCIFORME (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-271891 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/2/img/96282.jpg)
7 |
SCREW AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178608 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/9/img/73359.jpg)
8 |
SCREW TORX (4. 2X21. 5) TARAUD DE FAIRING OEM PIAGGIO COMMON A LA RANGE-CM178604 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/4/img/72924.jpg)
9 |
NUT SHEET METAL (4. 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017408 More informationQuantity required : 2 |
|||||||||
|
10 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/4/5/4/img/89454.jpg)
11 |
MUD FLAP REAR OEM PIAGGIO 50-125 VESPA LX, LXV-656731 More informationQuantity required : 1 |
|||||||||
11 |
6567310018-MUD FLAP AR More informationQuantity required : 1 |
|||||||||
|
11 |
65673100P3-MUD FLAP AR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/7/0/0/img/84700.jpg)
11 |
MUD FLAP REAR OEM PIAGGIO 50 VESPA LX BLUE-622904400L More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/7/0/1/img/84701.jpg)
11 |
MUD FLAP REAR OEM PIAGGIO 50 VESPA LX 2006 > BLACK-622904400P More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
12 |
SCREW TORX (6X22) FAIRING OEM PIAGGIO COMMON A LA RANGE-CM179201 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/7/img/73367.jpg)
12 |
SCREW TORX (6X22) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-CM179302 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
13 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
13 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 2 |
|||||||||
|
14 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 4 |
|||||||||
|
15 |
639335-LAMP AR More informationQuantity required : 1 |
|||||||||
|
16 |
641340-COVER LAMP AR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/0/img/63850.jpg)
17 |
SCREW PARKER (3. 5X13) CRUCIFORME DE FAIRING OEM PIAGGIO COMMON A LA RANGE-008372 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
17 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 2 |
|||||||||
|
18 |
623420-PROTECTOR MUD More informationQuantity required : 1 |
|||||||||
|
19 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
20 |
WASHER PLATE (4X12) OEM PIAGGIO COMMON A LA RANGE-013763 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/1/2/img/67812.jpg)
21 |
DOOR PLATE IMMATRICULATION OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-638833 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/6/8/img/67968.jpg)
21 |
BRACKET DE PLATE IMMATRICCULATION OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-642235 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
22 |
SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996 More informationQuantity required : 3 |
|||||||||
|
23 |
WASHER PLATE (4X12) OEM PIAGGIO COMMON A LA RANGE-013763 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/4/img/65414.jpg)
24 |
WASHER (4, 2X7, 6X0, 9) OEM PIAGGIO COMMON A LA RANGE-016404 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/9/img/65459.jpg)
25 |
NUT (M4) OEM PIAGGIO COMMON A LA RANGE-020104 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/4/img/66264.jpg)
26 |
CAP COVER OEM PIAGGIO COMMON A LA RANGE-293717 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
27 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 1 |
|||||||||
