Vehicle Exploded View - VESPA VESPA LX 150 4T 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

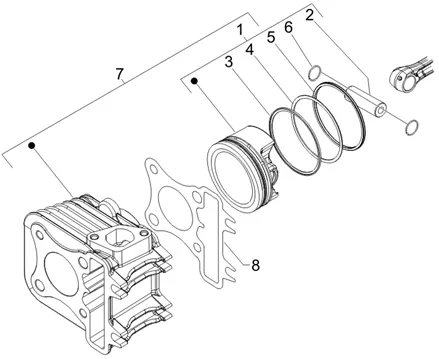

Moteur : 01.07 GROUPE CYLINDRE-PISTON-AXE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/543/Vespa_LX_150_4T_2006_01.07.PNG)
1 |
8270280001 - ENS PIST.-AXE More informationQuantity required : 1 |
||||||
|
1 |
8270280002 - ENS PIST.-AXE More informationQuantity required : 1 |
||||||
|
1 |
8270280003 - ENS PIST.-AXE More informationQuantity required : 1 |
||||||
|
1 |
8270280004 - ENS PIST.-AXE More informationQuantity required : 1 |
||||||
|
1 |
Ens pist.-Axe |
||||||
|
1 |
Ens pist.-Axe |
||||||
|
1 |
827031 - ENS PIST.-AXE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/1/5/img/66615.jpg)
2 |
SPINDLE PISTON OEM PIAGGIO 125 MP3 2006 > 2013, X10 2012 > 2015/VESPA GTS 2007 > 2016, VESPA LX 2006 > 2011-482335 More informationQuantity required : 1 |
||||||
|
3 |
Bague d'!tanch!ite |
||||||
|
3 |
Bague d'!tanch!ite |
||||||
|
3 |
KIT1U000023 - RING SET More informationQuantity required : 1 |
||||||
|
3 |
Segment |
||||||
|
4 |
KIT1U000023 - RING SET More informationQuantity required : 1 |
||||||
|
4 |
Segment racleur d'huile |
||||||
|
4 |
Segm.racleur d'huile |
||||||
|
4 |
Segment racleur d'huile |
||||||
|
5 |
Segment racleur d'huile |
||||||
|
5 |
Segment racleur d'huile |
||||||
|
5 |
486355 - SEGMENT RACLEUR D'HUILE More informationQuantity required : 1 |
||||||
|
5 |
Segm.racleur d'huile |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/2/2/img/70922.jpg)
6 |
CIRCLIPS DE PISTON OEM PIAGGIO ENGINE LEADER 125-250-963486 More informationQuantity required : 2 |
||||||
|
7 |
827041-GR. CIL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/4/img/70574.jpg)
8 |
CYLINDER BASE GASKET DE CYLINDER (0, 4MM) MAXI SCOOTER OEM PIAGGIO COMMON A LA RANGE 125-250-300-875112 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/5/img/70575.jpg)
8 |
CYLINDER BASE GASKET DE CYLINDER (0, 6MM) MAXI SCOOTER OEM PIAGGIO COMMON A LA RANGE 125-250-300-875113 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/6/img/70576.jpg)
8 |
CYLINDER BASE GASKET DE CYLINDER (0, 8MM) MAXI SCOOTER OEM PIAGGIO COMMON A LA RANGE 125-250-300-875114 More informationQuantity required : 1 |
