Vehicle Exploded View - VESPA VESPA LX 150 4T 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

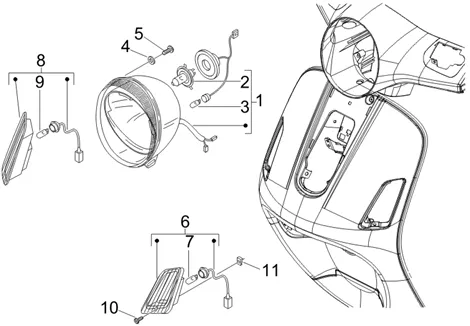

Installation électrique : 06.03 ECLAIRAGES AVANT - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/543/Vespa_LX_150_4T_2006_06.03.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/7/8/2/img/81782.jpg)
1 |
LAMP UNIT/HEADLAMP/HEADLAMP OEM PIAGGIO 125 VESPA LX 2005 >-58260R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/6/img/66256.jpg)
2 |
AMPOULE/LAMPE 12V 60/55W H4 OEM PIAGGIO COMMON A LA RANGE-292723 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
3 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/7/img/63837.jpg)
4 |
WASHER ELASTIC (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-006965 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/7/img/127167.jpg)
5 |
SCREW CRUCIFORME (5X16) OEM PIAGGIO COMMON A LA RANGE-1A003109 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/6/2/4/img/81624.jpg)
6 |
FRONT LEFT INDICATOR OEM PIAGGIO 50-125 VESPA LX-58174R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
7 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/6/2/7/img/81627.jpg)
8 |
FRONT RIGHT INDICATOR OEM PIAGGIO 50-125 VESPA LX-58175R More informationQuantity required : 1 |
||||||
|
9 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/6/img/63856.jpg)
10 |
SCREW PARKER (4, 2X19) CRUCIFORME DE INDICATOR OU FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-008457 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/9/0/img/95190.jpg)
11 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017406 More informationQuantity required : 2 |
