Vehicle Exploded View - VESPA VESPA LX 150 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

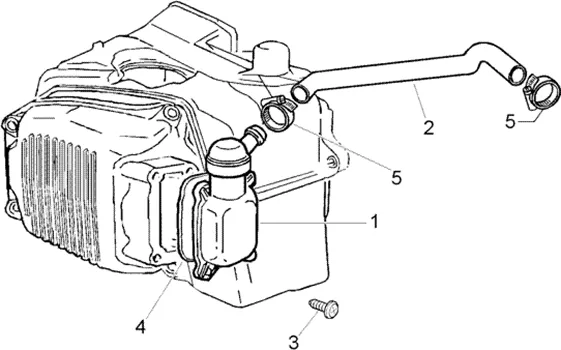

Moteur : T8 SOUPAPE RENIFLARD HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/706/Vespa_LX_150_1998-2005_T8.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/0/9/img/68809.jpg)
1 |
COVER DE RENIFLARD OEM PIAGGIO 125 FLY, LIBERTY, VESPA LX, VESPA-S-829008 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/4/7/img/69247.jpg)
2 |
HOSE RENIFLARD OIL OEM PIAGGIO COMMON A LA RANGE 125 2014 < More informationQuantity required : 1 |
||||||
3 |
828653 - BOULON More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/9/1/img/139391.jpg)
4 |
GASKET OF COVER CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-1A003985 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
5 |
CLAMP HOSE (19. 8MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001904 More informationQuantity required : 2 |
