Vehicle Exploded View - VESPA VESPA LX 150 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

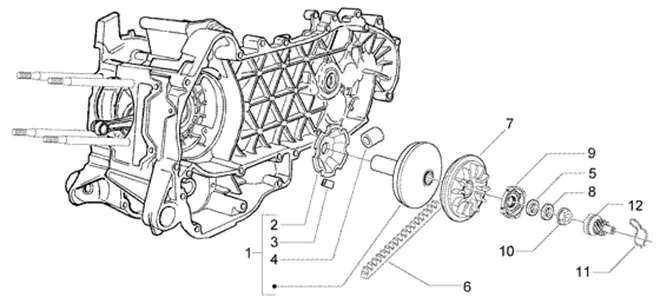

Moteur : T14 POULIE MOTRICE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/706/Vespa_LX_150_1998-2005_T14.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/3/1/img/73231.jpg)
1 |
PULLEY MOTRICE/VARIATOR OEM PIAGGIO 150 FLY 2006 >, LIBERTY 2006 >, X8 STREET 2006 >, VESPA LX 2006 >, VESPA-S 2007 >/APRILIA 150 SR-MOTARD 2012 >-CM144401 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/9/0/img/66690.jpg)
2 |
FLASQUE A ROULEAUX PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-485710 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/1/img/66461.jpg)
3 |
GUIDE/PATIN DE VARIATOR MAXI SCOOTER OEM PIAGGIO 125 MP3 2007 >, X8 2004 >, X9 2003 >, X-EVO 2007 >, FLY 2005 >, VESPA LX 2005 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 2005 >-4348555 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/7/6/img/73076.jpg)
4 |
GALET/ROLLER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 150 CC (SET OF 6)-CM1038015 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/2/img/66462.jpg)
5 |
WASHER PLATE (17X32X1) PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-434885 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/7/9/img/69179.jpg)
6 |
BELT OEM PIAGGIO 125 LIBERTY, MP3, X7, X8, X9, X-EVO, FLY, VESPA LX, VESPA GTS, YOURBAN/APRILIA 125 ATLANTIC, SR-MAX/GILERA 125 NEXUS, RUNNER 2015 <-841213 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/5/8/img/69358.jpg)
7 |
JOUE FIXE DE PULLEY MOTRICE OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125-845607 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/3/6/img/66436.jpg)
8 |
WASHER PLATE PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC-433391 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/6/7/img/68667.jpg)
9 |
OEM SCOOTER KICK OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-827386 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/3/img/72693.jpg)
10 |
NUT IGNITION/PULLEY OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-B015804 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/1/img/68901.jpg)
11 |
SPRING OF KICK OEM PIAGGIO 50-125 LIBERTY, VESPA LX, VESPA-S, 50 TYPHOON, 50 FLY, 50 NRG/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD, MOJITO-288673 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/3/5/img/66635.jpg)
12 |
OEM SCOOTER KICK OEM PIAGGIO 125 LIBERTY, VESPA LX, VESPA-S, VESPA ET4/APRILIA 125 MOJITO-483539 More informationQuantity required : 1 |
