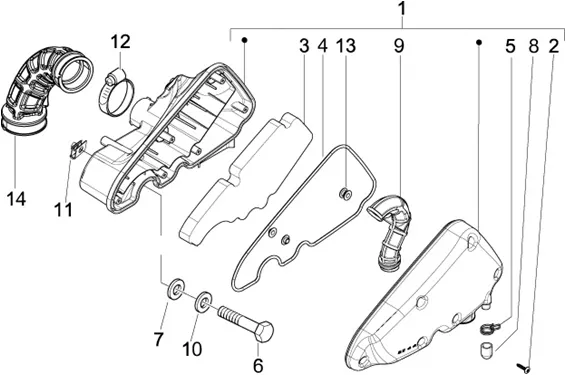

Vehicle Exploded View - VESPA VESPA LX 125 4T IE E3 2009-2011 VESPA

Moteur : 01.45 FILTRE À AIR
Filtre à air
Search
877439 - BOITE FILTRE AIR

1
P2R reference P2R reference 93259
Maker reference Maker reference 877439

877439-BOX FILTER AIR

More information

Quantity required : 1

SCREW AUTOTARAUDEUSE (3X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-258146

2
P2R reference P2R reference 66025
Maker reference Maker reference 258146

SCREW AUTOTARAUDEUSE (3X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-258146

More information

Quantity required : 6

ELEMENT/MOUSSE DE AIR FILTER (PREMIUM) OEM PIAGGIO 125 FLY 2005 >, LIBERTY, X8-STREET 2006 >, VESPA LX, 50 FLY 4T, VESPA LX 4T/APRILIA 125 MOJITO 2008 >, SPORT-CITY, SR-MAX 2012 >-8431940P

3
P2R reference P2R reference 157073
Maker reference Maker reference 8431940P

ELEMENT/MOUSSE DE AIR FILTER (PREMIUM) OEM PIAGGIO 125 FLY 2005 >, LIBERTY, X8-STREET 2006 >, VESPA LX, 50 FLY 4T, VESPA LX 4T/APRILIA 125 MOJITO 2008 >, SPORT-CITY, SR-MAX 2012 >-8431940P

More information

Quantity required : 1

843195-GASKET

4
P2R reference P2R reference 69266
Maker reference Maker reference 843195

843195-GASKET

More information

Quantity required : 1

CLAMP HOSE (D13) COOLING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-CM002910

5
P2R reference P2R reference 72895
Maker reference Maker reference CM002910

CLAMP HOSE (D13) COOLING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-CM002910

More information

Quantity required : 1

SCREW CRUCIFORME (6X50) OEM PIAGGIO COMMON A TOUTE LA RANGE-018640

6
P2R reference P2R reference 65448
Maker reference Maker reference 0186405

SCREW CRUCIFORME (6X50) OEM PIAGGIO COMMON A TOUTE LA RANGE-018640

More information

Quantity required : 2

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

7
P2R reference P2R reference 63777
Maker reference Maker reference 0030565

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

More information

Quantity required : 2

PURGEUR HOUSING DE AIR FILTER OEM PIAGGIO COMMON A LA RANGE SCOOTER 4T ET MAXI SCOOTER-827831

8
P2R reference P2R reference 68701
Maker reference Maker reference 827831

PURGEUR HOUSING DE AIR FILTER OEM PIAGGIO COMMON A LA RANGE SCOOTER 4T ET MAXI SCOOTER-827831

More information

Quantity required : 1

877698 - MANCHON

9
P2R reference P2R reference 93268
Maker reference Maker reference 877698

877698 - MANCHON

More information

Quantity required : 1

WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533

10
P2R reference P2R reference 65345
Maker reference Maker reference 0125335

WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533

More information

Quantity required : 2

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

11
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 2

CLAMP HOSE (19. 8MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001904

12
P2R reference P2R reference 72866
Maker reference Maker reference CM001904

CLAMP HOSE (19. 8MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001904

More information

Quantity required : 1

BUSH EN T (D5) MOLETEE CENTRAGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE-830056

13
P2R reference P2R reference 68888
Maker reference Maker reference 830056

BUSH EN T (D5) MOLETEE CENTRAGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE-830056

More information

Quantity required : 4

876836 - MANCHON

14
P2R reference P2R reference 93237
Maker reference Maker reference 876836

876836-SLEEVE

More information

Quantity required : 1
