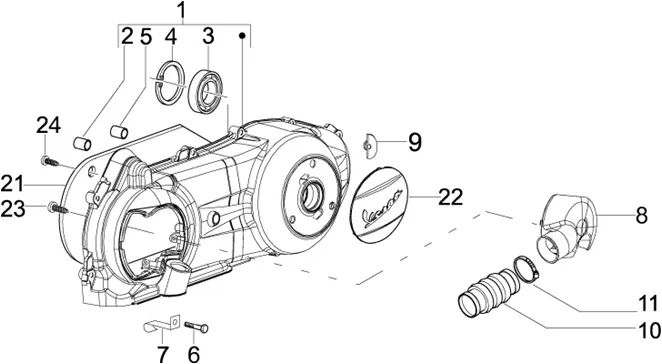

Moteur : 01.15 COUVERCLE CARTER - REFOIDISSEMENT CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/545/Vespa_LX_125_4T_IE_E3_2009-2011_01.15.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/8/7/img/69187.jpg)
1 |
COVER DE TRANSMISSION OEM PIAGGIO 125 MP3, BEVERLY, X7, X8, X9, X-EVO, VESPA GTS/APRILIA 125 ATLANTIC 2013 <-8413805 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/1/7/img/66417.jpg)
2 |
BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/7/1/img/66571.jpg)
3 |
BEARING (15X35X11) OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-4789853 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/3/img/63823.jpg)
4 |
CIRCLIPS (D = 38) OEM PIAGGIO COMMON A TOUTE LA RANGE-006635 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
5 |
BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
6 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792 More informationQuantity required : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/3/8/img/69338.jpg)
7 |
CLAMP OF FITTING KIT GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-844964 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/2/1/5/img/93215.jpg)
8 |
COVER DE COOLING CASING DE TRANSMISSIO OEM PIAGGIO 125 FLY, VESPA LX, VESPA-S 2011 >-876166 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/7/8/img/70378.jpg)
9 |
BUFFER/INSERT ARRET MOUNTING COVER TRANMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-871458 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/3/img/66303.jpg)
10 |
SOUFFLET/SLEEVE COOLING CASING OEM PIAGGIO 50-125 FLY, VESPA LX, VESPA-S-298548 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
11 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 1 |
||||||
21 |
DIAPHRAGME FOR AIR CHAUD 125CC-873682 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/5/6/8/7/img/205687.jpg)
22 |
COVER/ENJOLIVEUR ROND CASING DE TRANSMISSION OEM PIAGGIO 125-250 VESPA GTS, 125 VESPA LX 2005 >, LXV, VESPA-S 2007 >-CM155106 More informationQuantity required : 1 |
||||||
|
22 |
COVER/ENJOLIVEUR ROND CASING DE TRANSMISSION OEM PIAGGIO 125-250 VESPA GTS, 125 VESPA LX 2005 >, LXV, VESPA-S 2007 >-CM155106 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
23 |
SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793 More informationQuantity required : 3 |
||||||
|
24 |
|
