Vehicle Exploded View - VESPA VESPA GT 125 Vespa GTV 125 4T E3 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

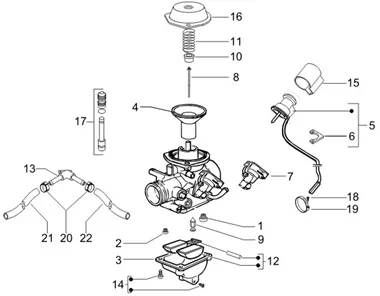

Moteur : 01.40 COMPOSANTS DE CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/208/Vespa_GTV_125_4T_E3_2006_01.40.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/5/6/img/73156.jpg)
1 |
GICLEUR MAXI 105 OEM PIAGGIO 125 X8, X9, X-EVO, VESPA GTS/APRILIA 125 ATLANTIC, SCARABEO 2010 <-CM129912 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/6/1/img/73161.jpg)
2 |
GICLEUR DE RALENTI (38) PIAGGIO 125 X-EVO, X8, VESPA GTS, X9, MP3-CM140103 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/0/5/img/73305.jpg)
3 |
CARBURETTOR FLOAT BOWL WITH PUMP DE REPRISE OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >-CM156710 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/7/2/img/73172.jpg)
4 |
BOISSEAU OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T EN ALUMINIUM WITH MEPLAT FOR CARBURETTOR KEIHIN-CM140301 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/0/9/img/73209.jpg)
5 |
STARTER OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125 ATLANTIC 2003-CM142913 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/8/8/img/68788.jpg)
6 |
PLATE OF CARBURETTOR OEM 50-125-200 COMMON A LA RANGE 2016 <-2828843 More informationQuantity required : 1 |
||||||
7 |
842519-KIT BODY STARTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/6/8/img/73168.jpg)
8 |
CARBURETTOR NEEDLE OEM PIAGGIO 125 MP3, X-EVO, X9, X8, VESPA GTS-CM140208 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/4/8/img/73248.jpg)
9 |
POINTEAU OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T ET MAXI SCOOTER 125 CC-CM147102 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/3/8/img/69238.jpg)
10 |
AGRAFE OF FITTING KIT D'AIGUILLE FOR CARBURETTOR CVEK OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC-842518 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/7/7/img/73177.jpg)
11 |
SPRING OF RETURN DE BOISSEAU DE THROTTLE OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >-CM140902 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/4/1/img/69241.jpg)
12 |
CARBURETTOR FLOAT OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125 ATLANTIC-842522 More informationQuantity required : 1 |
||||||
|
13 |
842516-KIT RECHAUFFEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/4/2/img/69242.jpg)
14 |
FLOAT BOWL GASKET FOR CARBURETTOR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250 CC-842523 More informationQuantity required : 1 |
||||||
|
15 |
CAPUCHON DE STARTER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-828844 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/6/8/img/70668.jpg)
16 |
CARBURETTOR TOP CAP OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250 CC-877764 More informationQuantity required : 1 |
||||||
|
17 |
CARBURETTOR FLOAT BOWL WITH PUMP DE REPRISE OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >-CM156710 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/9/img/70959.jpg)
18 |
SCREW FLANGE TH (6X10) OEM PIAGGIO COMMON A LA RANGE-969296 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/1/img/66101.jpg)
19 |
CLAMP FITTING KIT HOSE OEM PIAGGIO COMMON A LA RANGE-271477 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/0/img/72890.jpg)
20 |
HOSE CLAMP HOSE (7X10) OEM PIAGGIO COMMON A LA RANGE-CM002903 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/5/0/img/66450.jpg)
21 |
HOSE RECHAUFFAGE CARBURETTOR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250 CC-434381 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/1/6/img/68716.jpg)
22 |
HOSE/TUBE THERMOSTAT OEM PIAGGIO 125 BEVERLY, X8, X9-827921 More informationQuantity required : 1 |
