Vehicle Exploded View - VESPA VESPA GT 125 Vespa GTV 125 4T E3 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

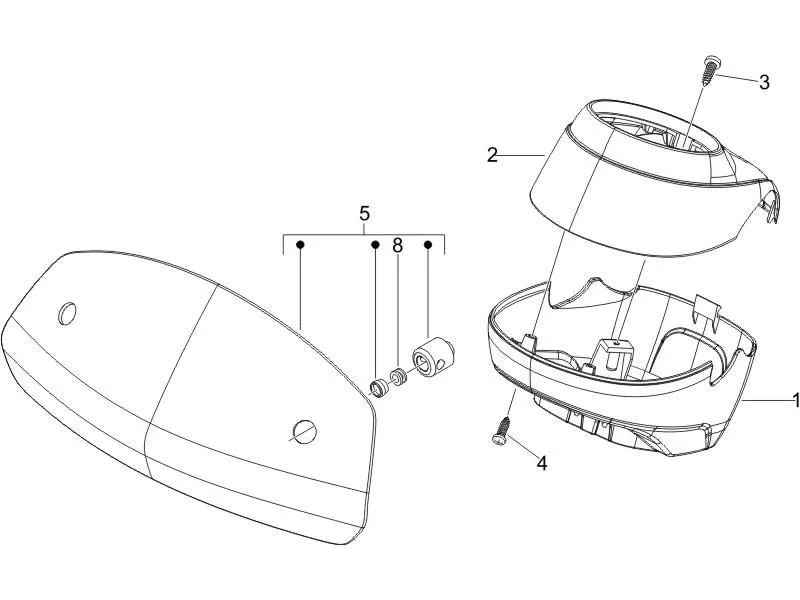

Guidon/direction : 03.01 COUVERTURES GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/208/Vespa_GTV_125_4T_E3_2006_03.01.PNG)
1 |
624682 - CACHE DIRECTION More informationQuantity required : 1 |
||||||
|
1 |
62468200EP-COVER STEERING More informationQuantity required : 1 |
||||||
|
1 |
62468200M4-COVER STEERING More informationQuantity required : 1 |
||||||
|
1 |
62468200VG-COVER STEERING More informationQuantity required : 1 |
||||||
|
2 |
624683-COVER GRIP More informationQuantity required : 1 |
||||||
|
2 |
REAR HANDLEBAR COVER "PIAGGIO GENUINE PART" 125 VESPA GTV GREY 780/A -62468300EP- More informationQuantity required : 1 |
||||||
|
2 |
62468300M4-COVER GRIP More informationQuantity required : 1 |
||||||
|
2 |
62468300VG-COVER STEERING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
3 |
SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/8/img/66038.jpg)
4 |
SCREW FAIRING/CARROSSERIE OEM PIGGIO COMMON A LA RANGE-259577 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/3/8/6/img/85386.jpg)
5 |
SAUTE VENT MINI OEM PIAGGIO 125-250VESPA GT, 250-300 VESPA GTV FUME-624701 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/9/3/img/66993.jpg)
8 |
RUBBER/RUBBER MOUNT (15 X32 X13) PROTECTOR PRISE OEM PIAGGIO COMMON A LA RANGE-560173 More informationQuantity required : 2 |
