Vehicle Exploded View - VESPA VESPA GTS 300 Super 4T 4V ie ABS E4 2016-2018
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

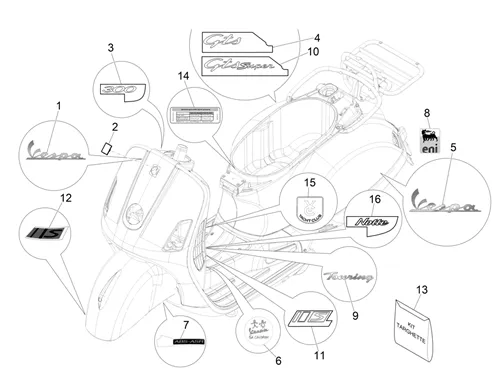

Châssis - parties plastiques - carrosseries : 02.38 MONOGRAMMES - DECORATIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/802/Vespa_GTS_300_Super_4T_4V_ie_ABS_E4_2016-2018_02.38.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/1/3/0/img/89130.jpg)
1 |
STICKER/STICKER/GRAPHIC " VESPA " OEM PIAGGIO 50-125 VESPA LX 2006 >, PRIMAVERA 2013 >, VESPA-S 2007 >, SPRINT 2014 >, 125 VESPA GTS 2007 >, PX 2014 >-656219 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/2/9/img/67129.jpg)
2 |
STICKER/STICKER/GRAPHIC OEM PIAGGIO 125 VESPA PX 1980 > 1998/300 GTV 2017 >-576464 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/3/5/8/img/140358.jpg)
3 |
STICKER/STICKER/GRAPHIC " 300 " OEM PIAGGIO VESPA 300 GTS 2016 > 2018-2H001663 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/3/5/7/img/140357.jpg)
4 |
STICKER/STICKER/GRAPHIC " GTS " OEM PIAGGIO 125-300 VESPA GTS 2016 > 2018-2H001662 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/1/3/1/img/89131.jpg)
5 |
STICKER/STICKER/GRAPHIC " VESPA " OEM PIAGGIO COMMON A LA RANGE SCOOTER 50-125 VESPA-656220 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/8/1/4/img/75814.jpg)
6 |
STICKER/STICKER/GRAPHIC (VESPA FOR CHILDREN) OEM PIAGGIO COMMON A LA RANGE VESPA-1B001078 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/8/6/8/img/75868.jpg)
7 |
STICKER/STICKER/GRAPHIC " ABS-ASR " OEM PIAGGIO 125-300 VESPA GTS 2008 > 2018-1B001417 More informationQuantity required : 1 |
||||||
8 |
895839 - DECALCO More informationQuantity required : 2 |
||||||
|
9 |
657584-EMBLEME " TOURING " * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/3/5/9/img/140359.jpg)
10 |
STICKER/STICKER/GRAPHIC " GTS SUPER " D'AILE REAR RIGHT OEM PIAGGIO 125-300 VESPA GTS 2016 > 2020-2H001664 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/5/4/9/img/146549.jpg)
11 |
STICKER/STICKER/GRAPHIC " S " OEM PIAGGIO 50-125 VESPA SPRINT, 125-300 VESPA GTS-2H001928 More informationQuantity required : 1 |
||||||
|
12 |
2H001926000A1-DECAL More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/5/4/7/img/146547.jpg)
13 |
STICKER/STICKER/KIT DECORS BODY PANEL REAR OEM PIAGGIO 125-300 VESPA GTS 2016 >-2H001925000A1 More informationQuantity required : 1 |
||||||
|
13 |
2H002767-DECAL SERIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/3/9/6/img/142396.jpg)
14 |
STICKER/STICKER/GRAPHIC PRESSION TYRE OEM PIAGGIO 125-300 GTS 2016 >-1G000161 More informationQuantity required : 1 |
||||||
|
15 |
2H002765-BADGE More informationQuantity required : 1 |
||||||
|
16 |
2H002769-BADGE More informationQuantity required : 1 |
