Vehicle Exploded View - VESPA VESPA GTS 300 Super 4T 4V ie ABS E4 2016-2018
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

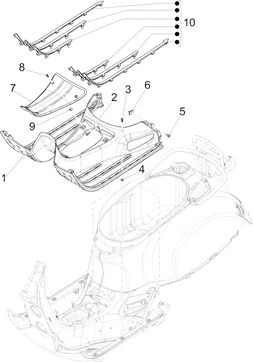

Châssis - parties plastiques - carrosseries : 02.31 PROTECTION CENTRALE - REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/802/Vespa_GTS_300_Super_4T_4V_ie_ABS_E4_2016-2018_02.31.png)
1 |
65663700L7-MAT More informationQuantity required : 1 |
||||||
|
1 |
FOOTREST "PIAGGIO GENUINE PART" 125 VESPA GTS 2016>, 300 VESPA GTS 2008> GREY 707/C -65663700HQ- More informationQuantity required : 1 |
||||||
|
1 |
6566375 - MARCHE PIEDS More informationQuantity required : 1 |
||||||
|
1 |
1B006953000YR5-MAT More informationQuantity required : 1 |
||||||
|
1 |
65663700XN2 - MARCHE PIEDS More informationQuantity required : 1 |
||||||
|
1 |
65663700HA - TAPIS CENTRAL More informationQuantity required : 1 |
||||||
|
1 |
65663700BR - TAPIS CENTRAL More informationQuantity required : 1 |
||||||
|
1 |
STEP FOOT/PLANCHER OEM PIAGGIO 125-300 GTS VESPA 2022 < GLOSS BLACK 94-1B00695300090 More informationQuantity required : 1 |
||||||
|
1 |
65663700VU - TAPIS More informationQuantity required : 1 |
||||||
|
1 |
65663700Q7 - TAPIS More informationQuantity required : 1 |
||||||
|
1 |
65663700MD - TAPIS More informationQuantity required : 1 |
||||||
|
1 |
65663700T8 - TAPIS More informationQuantity required : 1 |
||||||
|
1 |
65663700R7 - MARCHE PIEDS More informationQuantity required : 1 |
||||||
|
1 |
65663700NV - TAPIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
2 |
SCREW TORX (6X22) FAIRING OEM PIAGGIO COMMON A LA RANGE-CM179201 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/9/img/73359.jpg)
3 |
SCREW TORX (4. 2X21. 5) TARAUD DE FAIRING OEM PIAGGIO COMMON A LA RANGE-CM178604 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/1/9/img/109019.jpg)
4 |
AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/7/img/73367.jpg)
5 |
SCREW TORX (6X22) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-CM179302 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/8/0/0/img/75800.jpg)
7 |
COVER/HATCH BATTERY BLACK OEM PIAGGIO 125-300 GTS VESPA 2016 > 2022-1B001014 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/3/2/0/5/img/153205.jpg)
7 |
COVER/HATCH BATTERY GREY BLUE OEM PIAGGIO 125-300 GTS VESPA 2016 > 20221B005737 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
8 |
SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178601 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
9 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/0/8/9/8/img/200898.jpg)
10 |
KIT PROFILS STEP FOOT OEM PIAGGIO 125-300 GTS VESPA 2022 >-1B0106310000C More informationQuantity required : 1 |
||||||
|
10 |
KIT PROFILS STEP FOOT OEM PIAGGIO 125-300 GTS VESPA 2022 >-1B0106310000C More informationQuantity required : 1 |
||||||
|
10 |
1B005732-PROFIL STEP FOOT More informationQuantity required : 1 |
