Vehicle Exploded View - VESPA VESPA GTS 300 ie Super Sport 2010-2013 VESPA

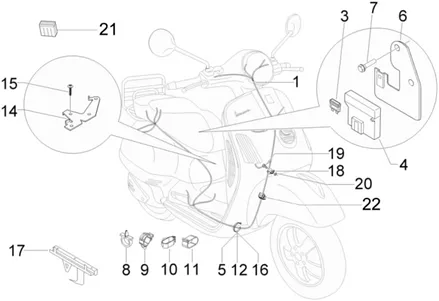

Installation électrique : 06.08 FAISCEAU DE CÂBLES PRINCIPAL
Faisceau de câbles principal
Search
HARNESS DE CABLE OEM PIAGGIO 125-300 VESPA GTS 2009 > 2016-641669

1
P2R reference P2R reference 86222
Maker reference Maker reference 641669

HARNESS DE CABLE OEM PIAGGIO 125-300 VESPA GTS 2009 > 2016-641669

More information

Quantity required : 1

642660 - FAISCEAU DE CABLES

1
P2R reference P2R reference 86440
Maker reference Maker reference 642660

642660-WIRING HARNESS

More information

Quantity required : 1

BLADE FUSE STANDARD 7, 5A OEM PIAGGIO COMMON A LA RANGE-252945

3
P2R reference P2R reference 66004
Maker reference Maker reference 252945

BLADE FUSE STANDARD 7, 5A OEM PIAGGIO COMMON A LA RANGE-252945

More information

Quantity required : 1

BLADE FUSE STANDARD 15A OEM PIAGGIO COMMON A LA RANGE-290860

3
P2R reference P2R reference 66244
Maker reference Maker reference 290860

BLADE FUSE STANDARD 15A OEM PIAGGIO COMMON A LA RANGE-290860

More information

Quantity required : 1

BLADE FUSE STANDARD 10A OEM PIAGGIO COMMON A TOUTE LA RANGE-292507

3
P2R reference P2R reference 66254
Maker reference Maker reference 292507

BLADE FUSE STANDARD 10A OEM PIAGGIO COMMON A TOUTE LA RANGE-292507

More information

Quantity required : 2

BLADE FUSE STANDARD 30A OEM PIAGGIO COMMON A LA RANGE-CM225730

3
P2R reference P2R reference 73401
Maker reference Maker reference CM225730

BLADE FUSE STANDARD 30A OEM PIAGGIO COMMON A LA RANGE-CM225730

More information

Quantity required : 1

584211 - FUSE HOLDER TERM.BOARD 6

4
P2R reference P2R reference 67296
Maker reference Maker reference 584211

584211-FUSE HOLDER TERM. BOARD 6

More information

Quantity required : 1

HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298

5
P2R reference P2R reference 65742
Maker reference Maker reference 145298

HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298

More information

Quantity required : 13

641532 - ETRIER

6
P2R reference P2R reference 86202
Maker reference Maker reference 641532

641532-CALIPER

More information

Quantity required : 1

SCREW FLANGE TH (6X10) OEM PIAGGIO COMMON A LA RANGE-969296

7
P2R reference P2R reference 70959
Maker reference Maker reference 969296

SCREW FLANGE TH (6X10) OEM PIAGGIO COMMON A LA RANGE-969296

More information

Quantity required : 1

CM006904 - OLLIER

8
P2R reference P2R reference 72906
Maker reference Maker reference CM006904

CM006904-OLLIER

More information

Quantity required : 6

CLIPS ATTACHE FASCEAU ORINE PIAGGIO COMMON A LA RANGE-CM006903

9
P2R reference P2R reference 72905
Maker reference Maker reference CM006903

CLIPS ATTACHE FASCEAU ORINE PIAGGIO COMMON A LA RANGE-CM006903

More information

Quantity required : 3

CLAMP PINCE RETENUE HOSE OEM PIAGGIO COMMON A LA RANGE-CM006902

10
P2R reference P2R reference 72904
Maker reference Maker reference CM006902

CLAMP PINCE RETENUE HOSE OEM PIAGGIO COMMON A LA RANGE-CM006902

More information

Quantity required : 2

CM006907 - RESSOT

10
P2R reference P2R reference 95046
Maker reference Maker reference CM006907

CM006907-RESSOT

More information

Quantity required : 1

CM006911 - RESSORT

10
P2R reference P2R reference 95047
Maker reference Maker reference CM006911

CM006911-SPRING

More information

Quantity required : 1

CLIPS ATTACHE HARNESS OEM PIAGGIO COMMON A LA RANGE-CM013203

11
P2R reference P2R reference 72918
Maker reference Maker reference CM013202

CLIPS ATTACHE HARNESS OEM PIAGGIO COMMON A LA RANGE-CM013203

More information

Quantity required : 1

HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298

12
P2R reference P2R reference 65742
Maker reference Maker reference 145298

HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298

More information

Quantity required : 1

656331 - SUPPORT

14
P2R reference P2R reference 89179
Maker reference Maker reference 656331

656331-BRACKET

More information

Quantity required : 1

SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836

15
P2R reference P2R reference 66117
Maker reference Maker reference 272836

SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836

More information

Quantity required : 1

HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134

16
P2R reference P2R reference 66017
Maker reference Maker reference 257134

HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134

More information

Quantity required : 3

639843 - PATTES

17
P2R reference P2R reference 67857
Maker reference Maker reference 639843

639843-PATTES

More information

Quantity required : 1

638792 - COLLIERS

18
P2R reference P2R reference 67811
Maker reference Maker reference 638792

638792-COLLIERS

More information

Quantity required : 1

SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-433800

19
P2R reference P2R reference 66440
Maker reference Maker reference 433800

SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-433800

More information

Quantity required : 1

WASHER PLATE (5. 2X15X1) OEM PIAGGIO COMMON A LA RANGE-006078

20
P2R reference P2R reference 63802
Maker reference Maker reference 0060785

WASHER PLATE (5. 2X15X1) OEM PIAGGIO COMMON A LA RANGE-006078

More information

Quantity required : 1

252605 - TERMINAL

21
P2R reference P2R reference 66003
Maker reference Maker reference 252605

252605-TERMINAL

More information

Quantity required : 1

SPRING DE CONNECTEUR OEM PIAGGIO COMMON A LA RANGE-584520

22
P2R reference P2R reference 67302
Maker reference Maker reference 584520

SPRING DE CONNECTEUR OEM PIAGGIO COMMON A LA RANGE-584520

More information

Quantity required : 5
