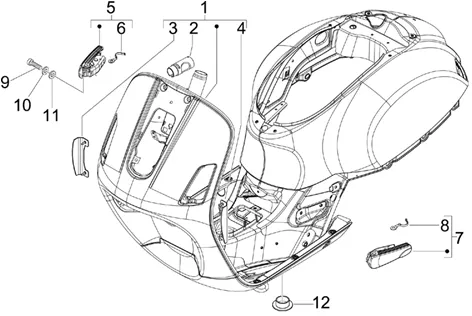

Vehicle Exploded View - VESPA VESPA GTS 300 ie Super Sport 2010-2013 VESPA

Châssis - parties plastiques - carrosseries : 02.01 CHÂSSIS/COQUE
Châssis/coque
Search

1
P2R reference P2R reference
Maker reference Maker reference 65654000EZ5

1B0008635 - CHASSIS

1
P2R reference P2R reference 75690
Maker reference Maker reference 1B0008635

1B0008635-FRAME *

More information

Quantity required : 1

BRACKET LOCK OEM PIAGGIO 125 X7, X8, X9, X-EVO, GTS, LX, FLY, BEVERLY/GILERA 125 RUNNER/APRILIA 50 SR MOTARD-298604

2
P2R reference P2R reference 66306
Maker reference Maker reference 298604

BRACKET LOCK OEM PIAGGIO 125 X7, X8, X9, X-EVO, GTS, LX, FLY, BEVERLY/GILERA 125 RUNNER/APRILIA 50 SR MOTARD-298604

More information

Quantity required : 1

577398 - SUPPORT

3
P2R reference P2R reference 81220
Maker reference Maker reference 577398

577398-BRACKET

More information

Quantity required : 1

577397 - SUPPORT

4
P2R reference P2R reference 81219
Maker reference Maker reference 577397

577397-BRACKET

More information

Quantity required : 1

PASSENGER FOOTREST RIGHT OEM PIAGGIO 125-300 GTS CHROME 2003 >-57327R

5
P2R reference P2R reference 80208
Maker reference Maker reference 57327R

PASSENGER FOOTREST RIGHT OEM PIAGGIO 125-300 GTS CHROME 2003 >-57327R

More information

Quantity required : 1

SPRING PASSENGER FOOTREST OEM PIAGGIO 125-300 GTS-620395

6
P2R reference P2R reference 83612
Maker reference Maker reference 620395

SPRING PASSENGER FOOTREST OEM PIAGGIO 125-300 GTS-620395

More information

Quantity required : 1

PASSENGER FOOTREST LEFT OEM PIAGGIO 125-300 GTS CHROME 2003 >-57326R

7
P2R reference P2R reference 80207
Maker reference Maker reference 57326R

PASSENGER FOOTREST LEFT OEM PIAGGIO 125-300 GTS CHROME 2003 >-57326R

More information

Quantity required : 1

SPRING PASSENGER FOOTREST OEM PIAGGIO 125-300 GTS-620395

8
P2R reference P2R reference 83612
Maker reference Maker reference 620395

SPRING PASSENGER FOOTREST OEM PIAGGIO 125-300 GTS-620395

More information

Quantity required : 1

SCREW BTR HEAD BOMBEE (8X20) OEM PIAGGIO COMMON A LA RANGE-975855

9
P2R reference P2R reference 71063
Maker reference Maker reference 975855

SCREW BTR HEAD BOMBEE (8X20) OEM PIAGGIO COMMON A LA RANGE-975855

More information

Quantity required : 4

WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047

10
P2R reference P2R reference 68491
Maker reference Maker reference 709047

WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047

More information

Quantity required : 4

WASHER (8, 2X16X2, 2) OEM PIAGGIO COMMON A TOUTE LA RANGE-834187

11
P2R reference P2R reference 69107
Maker reference Maker reference 834187

WASHER (8, 2X16X2, 2) OEM PIAGGIO COMMON A TOUTE LA RANGE-834187

More information

Quantity required : 2

CAP DE FRAME OEM PIAGGIO COMMON A LA RANGE-299557

12
P2R reference P2R reference 78065
Maker reference Maker reference 299557

CAP DE FRAME OEM PIAGGIO COMMON A LA RANGE-299557

More information

Quantity required : 2
