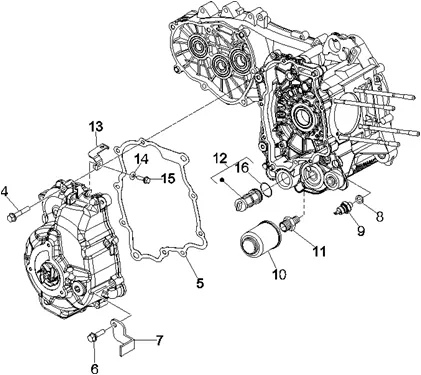

Vehicle Exploded View - VESPA VESPA GTS 250 ABS 2005-2009 VESPA

Moteur : 01.23 COUVERCLE VOLANT MAGNETIQUE - FILTRE À HUILE
Couvercle volant magnetique - Filtre à huile
Search
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838

4
P2R reference P2R reference 66367
Maker reference Maker reference 414838

SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838

More information

Quantity required : 9

GASKET COVER IGNITION OEM PIAGGIO 125-250-300 MP3, X7, VESPA GTS, BEVERLY, CARNABY, 250 X8, X-EVO, X9/GILERA 125-250-300 NEXUS/APRILIA 125-300 SR-MAX, SPORT-CITY ENGINE INJECTION-840504

5
P2R reference P2R reference 69150
Maker reference Maker reference 840504

GASKET COVER IGNITION OEM PIAGGIO 125-250-300 MP3, X7, VESPA GTS, BEVERLY, CARNABY, 250 X8, X-EVO, X9/GILERA 125-250-300 NEXUS/APRILIA 125-300 SR-MAX, SPORT-CITY ENGINE INJECTION-840504

More information

Quantity required : 1

SCREW FLANGE TH (6X112. 5) OEM PIAGGIO COMMON A LA RANGE-B016807

6
P2R reference P2R reference 72732
Maker reference Maker reference B016807

SCREW FLANGE TH (6X112. 5) OEM PIAGGIO COMMON A LA RANGE-B016807

More information

Quantity required : 1

847716 - PLAQUETTE

7
P2R reference P2R reference 93065
Maker reference Maker reference 847716

847716-PLATE

More information

Quantity required : 1

GASKET OF MANO OU DE VIDANGE OEM PIAGGIO COMMON A LA RANGE-486075

8
P2R reference P2R reference 66703
Maker reference Maker reference 486075

GASKET OF MANO OU DE VIDANGE OEM PIAGGIO COMMON A LA RANGE-486075

More information

Quantity required : 1

SENSOR PRESSION D'HUILE OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER ET MOTO (PREVOIR ADAPTATEUR 99327 FOR 1200 GRISO, NORGE, STELVIO, SPORT)-1A024308R

9
P2R reference P2R reference 67933
Maker reference Maker reference 1D001138

SENSOR PRESSION D'HUILE OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER ET MOTO (PREVOIR ADAPTATEUR 99327 FOR 1200 GRISO, NORGE, STELVIO, SPORT)-1A024308R

More information

Quantity required : 1

OIL FILTER MAXI SCOOTER OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA ATLANTIC, SR MAX/GILERA NEXUS-1A022356

10
P2R reference P2R reference 210649
Maker reference Maker reference 1A022356

OIL FILTER MAXI SCOOTER OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA ATLANTIC, SR MAX/GILERA NEXUS-1A022356

More information

Quantity required : 1

OIL FILTER MAXI SCOOTER OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA ATLANTIC, SR MAX/GILERA NEXUS-1A022356

10
P2R reference P2R reference 210649
Maker reference Maker reference 82635R

OIL FILTER MAXI SCOOTER OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA ATLANTIC, SR MAX/GILERA NEXUS-1A022356

More information

Quantity required : 1

SCREW SPECIALE OIL FILTER OEM PIAGGIO 300 COMMON A LA RANGE-840507

11
P2R reference P2R reference 69151
Maker reference Maker reference 840507

SCREW SPECIALE OIL FILTER OEM PIAGGIO 300 COMMON A LA RANGE-840507

More information

Quantity required : 1

CREPINE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-843568

12
P2R reference P2R reference 69293
Maker reference Maker reference 843568

CREPINE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-843568

More information

Quantity required : 1

847717 - PLAQUETTE

13
P2R reference P2R reference 93066
Maker reference Maker reference 847717

847717-PLATE

More information

Quantity required : 1

WASHER A TEETH (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-012528

14
P2R reference P2R reference 65342
Maker reference Maker reference 0125285

WASHER A TEETH (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-012528

More information

Quantity required : 1

SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-484123

15
P2R reference P2R reference 66655
Maker reference Maker reference 484123

SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-484123

More information

Quantity required : 1

GASKET OF CREPINE D'HUILE OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA 50-125 SR-MOTARD, SPORT-CITY/GILERA 500 FUOCO-288474

16
P2R reference P2R reference 66191
Maker reference Maker reference 288474

GASKET OF CREPINE D'HUILE OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA 50-125 SR-MOTARD, SPORT-CITY/GILERA 500 FUOCO-288474

More information

Quantity required : 1
