Vehicle Exploded View - VESPA VESPA GTS 250 ABS 2005-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

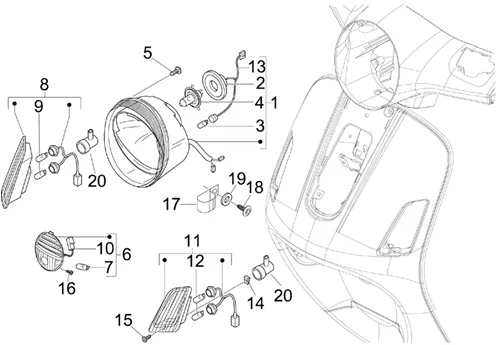

Installation électrique : 06.03 ECLAIRAGES AVANT - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/214/Vespa_GTS_250_ABS_2005-2009_06.03.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/8/0/0/img/81800.jpg)
1 |
LAMP UNIT/HEADLAMP/HEADLAMP OEM PIAGGIO 125-250 VESPA GTS 2006 >, 300 VESPA GTS 2011 > 2016-58267R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/9/6/2/img/76962.jpg)
2 |
DOOR AMPOULE OEM PIAGGIO 125-300 GTS 2008 > 2016-253327 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
3 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/6/img/66256.jpg)
4 |
AMPOULE/LAMPE 12V 60/55W H4 OEM PIAGGIO COMMON A LA RANGE-292723 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/3/img/66293.jpg)
5 |
SCREW SHEET METAL (L35MM) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-296458 More informationQuantity required : 4 |
||||||
6 |
584726-CLIGNOTEUR AV. More informationQuantity required : 1 |
||||||
|
7 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/5/5/6/img/85556.jpg)
8 |
FRONT RIGHT INDICATOR OEM PIAGGIO 125-250-300 VESPA GTS-638715 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
9 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/9/2/img/67792.jpg)
10 |
DOOR AMPOULE/HARNESS CABLE OEM PIAGGIO 50-125 FLY, LIBERTY, VESPA LX, 125-250-300 VESPA GTS, 250-300-400 BEVERLY 2012 <-638563 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/5/5/7/img/85557.jpg)
11 |
FRONT LEFT INDICATOR OEM PIAGGIO 125 VESPA GT 2005-638716 More informationQuantity required : 1 |
||||||
|
12 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 1 |
||||||
|
13 |
DOOR AMPOULE/HARNESS CABLE OEM PIAGGIO 50-125 FLY, LIBERTY, VESPA LX, 125-250-300 VESPA GTS, 250-300-400 BEVERLY 2012 <-638563 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/9/0/img/95190.jpg)
14 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017406 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/6/img/63856.jpg)
15 |
SCREW PARKER (4, 2X19) CRUCIFORME DE INDICATOR OU FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-008457 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
16 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 2 |
||||||
|
17 |
638792-COLLIERS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/4/0/img/66440.jpg)
18 |
SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-433800 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/2/img/63802.jpg)
19 |
WASHER PLATE (5. 2X15X1) OEM PIAGGIO COMMON A LA RANGE-006078 More informationQuantity required : 1 |
||||||
|
20 |
250522 - CACHE More informationQuantity required : 2 |
