Vehicle Exploded View - VESPA VESPA GTS 125 Super 4T E5 ABS 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

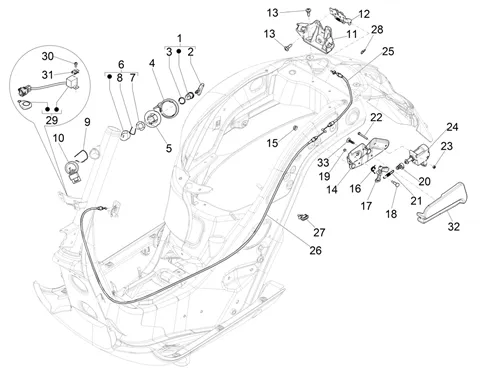

Châssis - parties plastiques - carrosseries : 02.46 SERRURES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/972/Vespa_GTS_125_Super_4T_E5_ABS_2021_(EMEA)_02.46.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/3/6/0/img/142360.jpg)
1 |
IGNITION SWITCH/LOCK OEM PIAGGIO 125-300 VESPA GTS 2018 >-1B009662R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/3/9/6/img/146396.jpg)
2 |
EBAUCHE DE CLE TRANSPONDEUR OEM PIAGGIO 125-300 GTS VESPA 2018 >/125 PRIMAVERA, SPRINT 2021 >/ELLETRICA 2018 >-1B004020 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/8/img/66308.jpg)
3 |
GASKET OF LOCK OEM PIAGGIO COMMON A TOUTE LA RANGE-298731 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/4/7/3/img/174473.jpg)
4 |
ANTENNE DISPOSITIF ANTI-DEMARRAGE OEM PIAGGIO 125 MEDLEY, GTS 2016 >/SR GT COMPACT APRILIA 2021 >-1D003438R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/4/3/0/img/127430.jpg)
5 |
BODY DE LOCK OEM PIAGGIO 50-125 LIBERTY 2016 >, PRIMAVERA 2016 >, SPRINT 2016 >, 125-300 VESPA GTS 2016 >-1B001876 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/0/7/2/img/154072.jpg)
6 |
BLOC LOCK SCOOT OEM PIAGGIO 50-125 FLY, LIBERTY, ZIP, VESPA LX, 125-250-400 X8, X-EVO, 125-250-300 VESPA GTS/GILERA 50 RUNNER/APRILIA 50-125 SR, SPORT-CITY-1B006291 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/5/img/66305.jpg)
7 |
WASHER DE BLOC STEERING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-298594 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/9/img/66309.jpg)
8 |
SPRING D'ARRET SERRRURE OEM PIAGGIO COMMON A TOUTE LA RANGE-298838 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/8/img/66008.jpg)
9 |
SPRING D'ARRET DE IGNITION SWITCH OEM PIAGGIO COMMON A TOUTE LA RANGE-253937 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/6/0/4/img/127604.jpg)
10 |
IGNITION SWITCH/LOCK OEM PIAGGIO 50-125-300 LIBERTY, MEDLEY, SPRINT, PRIMAVERA, GTS 2016 >-1D001338 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/2/4/7/img/81247.jpg)
11 |
BRACKET LOCK DE SEAT OEM PIAGGIO VESPA 125-250-300 GTS-57747300EB More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/2/3/1/img/95231.jpg)
12 |
LOCK/MECANISME LATCH DE SEAT OEM PIAGGIO 125-250-300 VESPA GTS 2009 >-CM023703 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
13 |
SCREW TORX (6X22) FAIRING OEM PIAGGIO COMMON A LA RANGE-CM179201 More informationQuantity required : 4 |
||||||
14 |
577471-PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
15 |
NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245 More informationQuantity required : 2 |
||||||
|
16 |
577131-SPRING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/4/9/img/67149.jpg)
17 |
LEVER DE LOCK OEM PIAGGIO COMMON A LA RANGE-577129 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/1/4/img/66314.jpg)
18 |
SCREW SPECIALE DOIGT DE LOCK OEM PIAGGIO COMMON A LA RANGE-299972 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/6/2/img/67162.jpg)
19 |
NUT AUTOBLOQUANT/NYLSTOP (M4X70) OEM PIAGGIO COMMON A LA RANGE-577620 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/4/8/img/67148.jpg)
20 |
GASKET OF CABLE/TRANSMISSION OEM PIAGGIO COMMON A LA RANGE-577128 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/2/6/img/67626.jpg)
21 |
SPRING DE LOCK OEM PIAGGIO COMMON A LA RANGE-620415 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/3/img/67293.jpg)
22 |
SCREW TH (4X35) OEM PIAGGIO COMMON A LA RANGE-584121 More informationQuantity required : 2 |
||||||
|
23 |
NUT AUTOBLOQUANT/NYLSTOP (M4X70) OEM PIAGGIO COMMON A LA RANGE-577620 More informationQuantity required : 2 |
||||||
|
24 |
1D002266 - SADDLE ACTUATOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/1/4/img/95114.jpg)
25 |
CABLE/CONTROL/TRANSMISSION OUVERTURE DE SEAT (PARTIE REAR) OEM PIAGGIO 125-250-300 VESPA GTS-CM012811 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/1/6/img/95116.jpg)
26 |
CABLE/CONTROL/TRANSMISSION OUVERTURE DE SEAT (PARTIE FRONT) OEM PIAGGIO 125-250-300 VESPA GTS 2009 >-CM012813 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/7/img/66307.jpg)
27 |
CLAMP OEM PIAGGIO COMMON A LA RANGE-298729 More informationQuantity required : 1 |
||||||
|
28 |
191117-CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/3/2/2/4/img/153224.jpg)
29 |
LOCALISATEUR/BIKE FINDER OEM PIAGGIO COMMON A LA RANGE-1D002038 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
30 |
SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178601 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
31 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 1 |
||||||
|
32 |
1B004649-COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
33 |
SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793 More informationQuantity required : 2 |
