Vehicle Exploded View - VESPA VESPA GTS 125 Super 4T E5 ABS 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

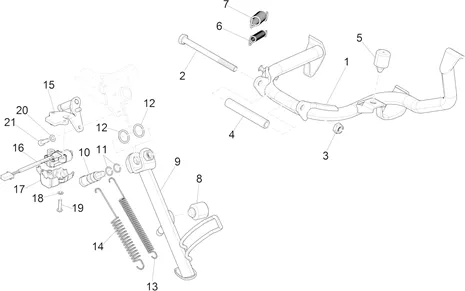

Châssis - parties plastiques - carrosseries : 02.25 BÉQUILLE/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/972/Vespa_GTS_125_Super_4T_E5_ABS_2021_(EMEA)_02.25.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/7/5/7/img/157757.jpg)
1 |
CENTRE STAND OEM PIAGGIO 125 VESPA GTS 2017 >-1C003575R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/2/5/img/65625.jpg)
2 |
SCREW TH (10X130) DE CENTRE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-030115 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
3 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/5/2/5/6/img/155256.jpg)
4 |
SPACER DE STAND OEM PIAGGIO COMMON A LA RANGE-1C004537 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/9/6/img/146196.jpg)
5 |
BUFFER DE CENTRE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-1C002702 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/6/img/67266.jpg)
6 |
SPRING DE CENTRE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-582850 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/7/img/67267.jpg)
7 |
SPRING DE CENTRE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250 CC-582851 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/0/2/8/img/94028.jpg)
8 |
BUFFER RUBBER DE STAND OEM PIAGGIO COMMON A LA RANGE-967351 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/2/7/6/3/img/172763.jpg)
9 |
SIDE STAND OEM PIAGGIO 125-300 VESPA GTS 2016 >-1C003398 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/9/9/2/img/75992.jpg)
10 |
SCREW SHAFT OF STAND OEM PIAGGIO 125-300 GTS VESPA 2016 >-1C0003846 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/5/img/66465.jpg)
11 |
O-RING (12, 42X1) OEM PIAGGIO COMMON A LA RANGE-434947 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/1/2/img/65812.jpg)
12 |
O-RING SIDE STAND OEM PIAGGIO 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X10, X9/GILERA 500 NEXUS, FUOCO, GP 800/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV-191189 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/5/6/1/img/82561.jpg)
13 |
SPRING DE STAND LATERAL OEM PIAGGIO 125-250-300 VESPA GTS-599561 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/7/img/66287.jpg)
14 |
SPRING DE STAND LATERAL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-295789 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/1/8/9/img/109189.jpg)
15 |
FLANGE DU BRACKET FOR SENSOR OF STAND OEM PIAGGIO 125-300 GTS VESPA 2016 >-1C000368 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/4/0/2/img/86402.jpg)
16 |
642559 - BOUTON More informationQuantity required : 1 |
|||||||||
17 |
1C000518-PROTECTOR More informationQuantity required : 1 |
|||||||||
|
18 |
016343 WASHER More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/3/3/img/72733.jpg)
19 |
SCREW TORX (5X20) OEM PIAGGIO COMMON A LA RANGE-B016808 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/1/img/63841.jpg)
20 |
WASHER ELASTIC (6. 4X12X0. 5) OEM PIAGGIO COMMON A LA RANGE-006976 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/3/img/68493.jpg)
21 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-709099 More informationQuantity required : 2 |
|||||||||
